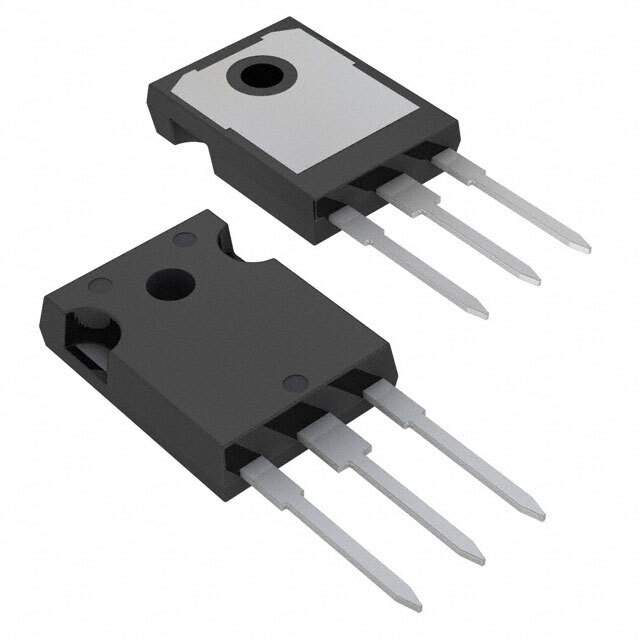

AOK40B60D Real Image
Same model may have multiple batches, images only for reference.

AOK40B60D

Part No AOK40B60D
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description TO247 PACKAGE MARKING DESCRIPTION | IGBT 600V 80A 312.5W TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tube
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 80A
Current - Collector Pulsed (Icm) 160A
Vce(on) (Maximum) at Vge, Ic 2.1V at 15V, 40A
Maximum Power 312.5W
Switching Energy 1.72mJ (on), 300μJ (off)
Input Type Standard
Gate Charge 63.5nC
Td (on/off) at 25°C 28ns/77ns
Test Condition 400V, 40A, 7.5Ohm, 15V
Reverse Recovery Time (trr) 138ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247
Manufacturer Pack Quantity 240
MSL Level 1 (Unlimited)
Win Source Part Number 1144950-AOK40B60D
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOK40B60D CAD Model

Description

The AOK40B60D is a through-hole IGBT type semiconductor device manufactured by Alpha & Omega Semiconductor Inc.

  • Mounting Type: Through-Hole
  • Device Type: IGBT
  • Voltage Collector Emitter Breakdown: 600V
  • Current Collector (Ic) (Maximum): 80A
  • Reverse Recovery Time (trr): 138ns
  • Gate Charge: 63.5nC
  • Package: TO-247
  • Operating Temperature: -55°C to 150°C
  • Switching Energy (On): 1.72mJ
  • Switching Energy (Off): 300μJ
  • Input Type: Standard
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 240
  • MSL Level: 1 (Unlimited)
  • Maximum Power: 312.5W
  • Vce(on) (Maximum) @ Vge, Ic: 2.1V @ 15V, 40A
  • Td (on/off) @ 25°C: 28ns/77ns
