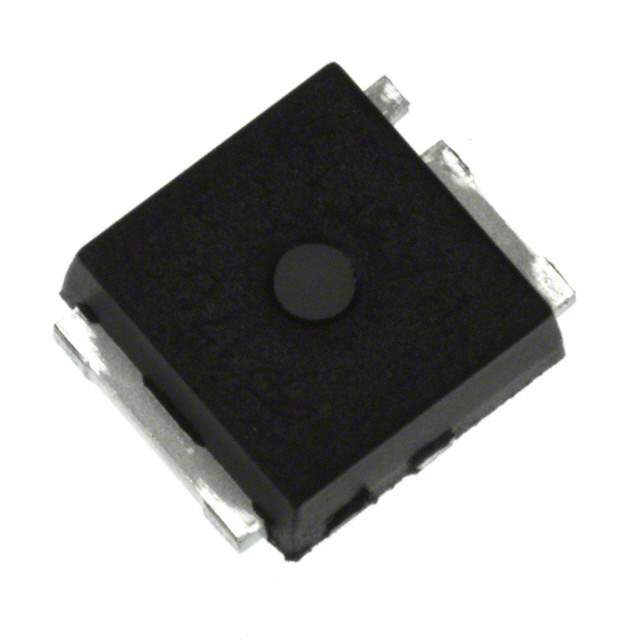

AOL1422 Real Image
Same model may have multiple batches, images only for reference.

AOL1422

Part No AOL1422
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 85A 8ULTRASO / Trans MOSFET N-CH 30V 19A 3-Pin Ultra SO
Datasheet
AOL1422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 19A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 112nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 6800pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.08W (Ta), 100W (Tc)
Rds On (Maximum) @ Id, Vgs 3.7 mOhm @ 20A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package UltraSO-8
Package 3-PowerSMD, Flat Leads
Win Source Part Number 768556-AOL1422
Popularity Medium
Supply and Demand Status Balance
Family Name AOL1422
Introduction Date November 08, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOL1422 CAD Model

Description

The Alpha & Omega Semiconductor AOL1422 is a MOSFET transistor that is designed for use in discrete semiconductor products. The device is packaged in a 3-PowerSMD, Flat Leads package and operates over a wide temperature range with the following specifications:

  • Temperature Range: -55°C to 175°C (TJ)
  • Channel Type: N
  • Drain Source Voltage: 30V
  • Maximum Rds On: 3.7 mOhm @ 20A, 10V
  • Status: Obsolete (EOL)
  • Maximum Power Dissipation: 2.08W (Ta), 100W (Tc)
  • Alternative Parts: NTMFS4119NT3G, NTMFS4119NT1G
  • Estimated EOL Date: Obsolete / End of Life
