The AON2701L from Alpha & Omega Semiconductor is a P-Channel enhancement mode MOSFET designed for load switching and power management applications. It utilizes advanced trench technology to provide low on-resistance (RDS(ON)), fast switching speeds, and low gate charge. These features make it suitable for portable devices, battery management systems, and DC-DC converters where efficiency and size are critical.

Applications:

• Load Switching
• Power Management in Portable Devices (Smartphones, Tablets)
• Battery Management Systems
• DC-DC Converters
• Power Adapters

Features:

• Low RDS(ON) - Minimizes conduction losses and improves efficiency
• Low Gate Charge (Qg) - Enables faster switching speeds and reduces switching losses
• Logic Level Gate Drive - Allows direct drive from logic circuits
• Advanced Trench Technology - Provides superior performance
• RoHS Compliant - Environmentally friendly

Benefits:

• Increased Efficiency - Reduced power loss translates to cooler operation and extended battery life.
• Faster Switching - Improved dynamic performance in high-frequency applications.
• Simplified Design - Logic level gate drive reduces the need for complex gate drive circuitry.
• Reliable Performance - Robust design ensures stable operation in demanding environments.
• Environmentally Compliant - Meets environmental regulations for responsible product design.

Additional Details:

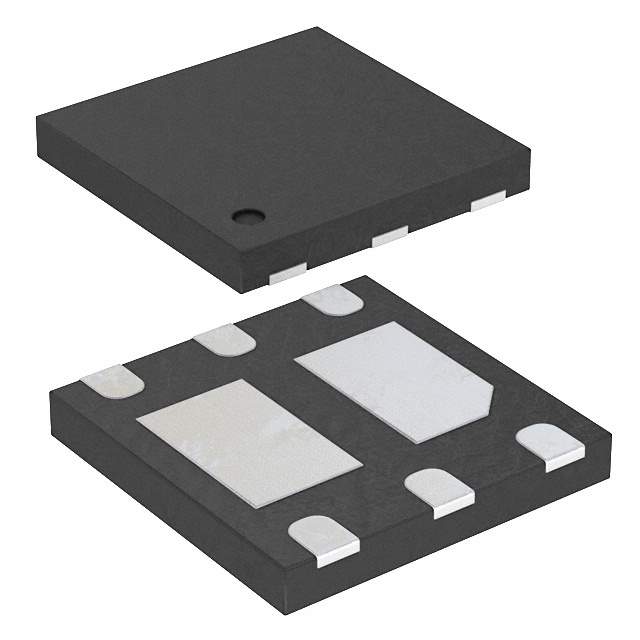

The AON2701L features a drain-source voltage (VDS) rating of -30V and a continuous drain current (ID) rating of -4.5A. The static drain-source on-resistance (RDS(ON)) is typically 45 mΩ at VGS = -10V and 70 mΩ at VGS = -4.5V. It is available in a DFN2x2 package, which is small and space-saving. This MOSFET is designed for applications requiring efficient power switching and low power consumption in a compact form factor.

The AON2701L's low RDS(ON) and fast switching capabilities make it ideal for portable devices where efficiency is paramount. Its logic-level gate drive simplifies the design process and reduces component count. The small DFN2x2 package allows for high-density designs. The AON2701L provides a reliable and efficient solution for power management needs in modern electronics.
