Same model may have multiple batches, images only for reference.

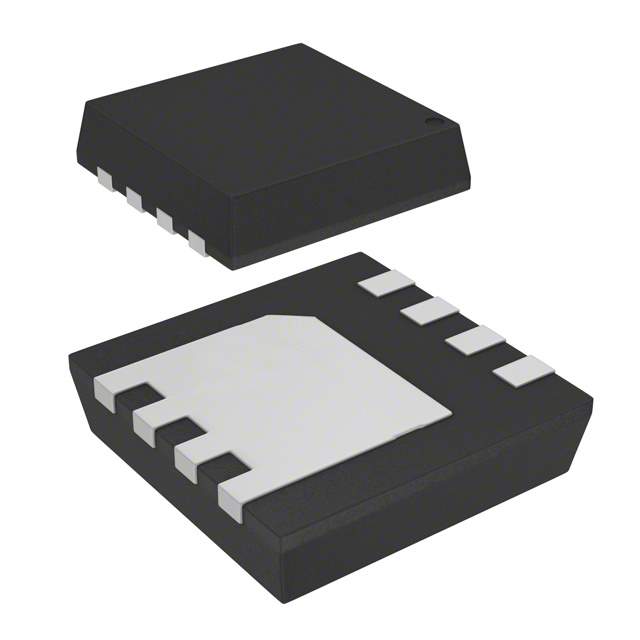

AON7442 Real Image
Same model may have multiple batches, images only for reference.

AON7442

Part No AON7442
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CHANNEL 30V 50A 8DFN
Datasheet
AON7442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features N-Channel 30 V 50A (Tc) 83W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
Manufacturer Alpha & Omega Semiconductor Inc.
Series AlphaMOS
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerWDFN
Case / Package 8-DFN-EP (3.3x3.3)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861097-AON7442
Ultra Librarian 3D Model Ultra Librarian AON7442 CAD Model

Description

The Alpha & Omega Semiconductor Inc. MOSFET is a N-Channel 30V power MOSFET that can handle a maximum power dissipation of 50A (Tc), 83W (Tc).

  • Package: reel - TR
  • Mounting: surface mount technology
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current @ 25°C: 14A (Ta), 46A (Tc)
  • Gate-Source Threshold Voltage: 3.5V @ 250μA
  • Maximum Gate Charge: 75nC @ 10V
  • Maximum Rds On @ Id,Vgs: 6.8 mOhm @ 20A, 10V
  • Category: Discrete Semiconductor Products
