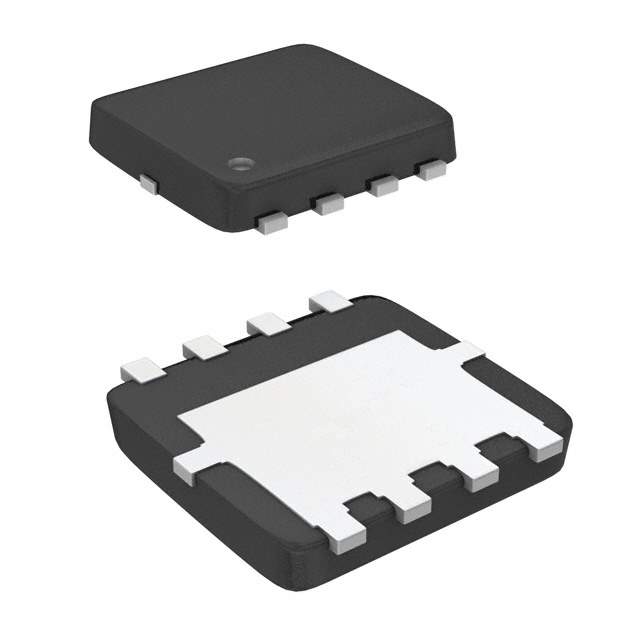

The AON7462 is an N-channel MOSFET from Alpha & Omega Semiconductor Inc.

• Drain-Source Breakdown Voltage: 300V
• Continuous Drain Current: 900mA (Ta), 2.5A (Tc) @ 25°C
• Maximum Rds On: 1.5 Ohm @ 900mA, 10V
• Maximum Gate-Source Voltage: ±30V
• Gate-Source Threshold Voltage: 4.5V @ 250μA
• Maximum Gate Charge: 5.6nC @ 10V
• Power Dissipation: 3.1W (Ta), 25W (Tc)
• Ambient Temperature Range: -50°C to 150°C (TJ)
• Introduction Date: February 25, 2011
• RoHS Compliant: yes

The MOSFET is suitable for use in a variety of electronic applications.
