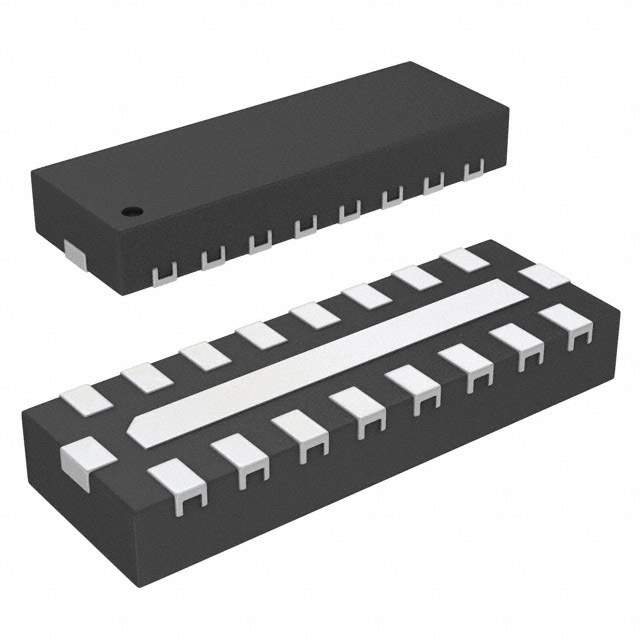

AOZ8040DI Real Image
Same model may have multiple batches, images only for reference.

AOZ8040DI

Part No AOZ8040DI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/9PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Center / Cutoff Frequency 250MHz (Cutoff)
Attenuation Value -20dB @ 1GHz to 3GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 9pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height 0.024" (0.60mm)
Win Source Part Number 1017408-AOZ8040DI
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOZ8040DI CAD Model

Description

The AOZ8040DI is an obsolete (EOL) electronic component that is manufactured by Alpha & Omega Semiconductor Inc and has a balanced supply and demand status.

  • Win Source Part Number: 1017408-AOZ8040DI
  • Low pass type component
  • Voltage rating of: 5V
  • Suitable for data lines in mobile devices
  • Mounting: SMD (SMT)
  • Technology: RC (Pi)
  • Attenuation value: -20dB @ 1GHz to 3GHz
  • Filter order of: 2nd
  • Center/cutoff frequency: 250MHz (Cutoff)
  • Resistance-channel (Ohms): 100
  • Reliable and efficient component that can be used in various electronic devices
