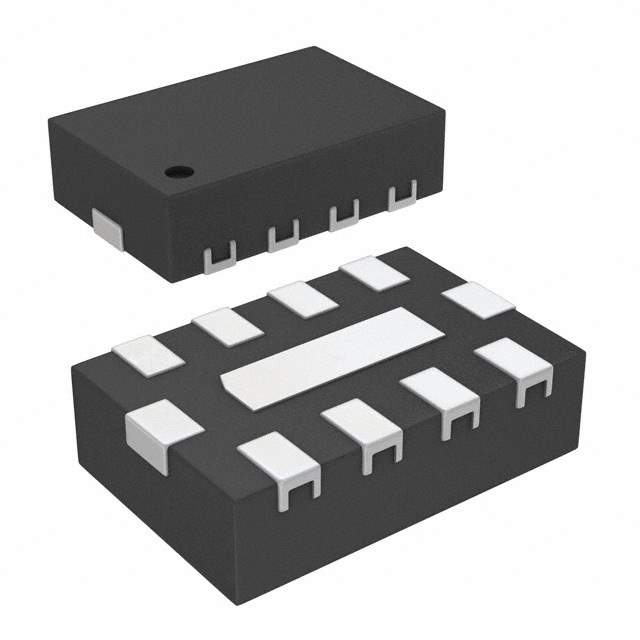

Same model may have multiple batches, images only for reference.

AOZ8073DI

Name: AOZ8073DI
Brand: Alpha & Omega Semiconductor Inc.
SKU: 768585
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AOZ8073DI
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER RC(PI) 100 OHM/8PF SMD / 4-Line EMI Filter with Integrated ESD Protection
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel package
Part Status	Obsolete(EOL)
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	4
Center / Cutoff Frequency	220MHz (Cutoff)
Attenuation Value	-20dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms)	100
Current	20mA
Values	R = 100 Ohms, C = 8pF
ESD Protection	Yes
Operating Temperature Range	-40°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage Rating DC	5V
Mounting	SMD
Package	8-UFDFN Exposed Pad
Dimension	0.071" L x 0.047" W (1.80mm x 1.20mm)
Height	0.024" (0.60mm)
Win Source Part Number	768585-AOZ8073DI
Popularity	Medium
Supply and Demand Status	Limited
Family Name	AOZ8073DI
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian AOZ8073DI CAD Model

Alternative Products

Description

The AOZ8073DI is a low pass filter from Alpha & Omega Semiconductor Inc.

Application: Data lines for mobile devices
Cutoff Frequency: 220MHz
Attenuation: -20dB @ 1GHz ~ 3GHz
Package: 8-UFDFN Exposed Pad
Mounting: Surface mount
Height: 0.024" (0.60mm)
Channels: 4
Resistance: 100 Ohms
Values: R = 100 Ohms, C = 8pF
ESD Protection: Yes
Supply and Demand: Limited
