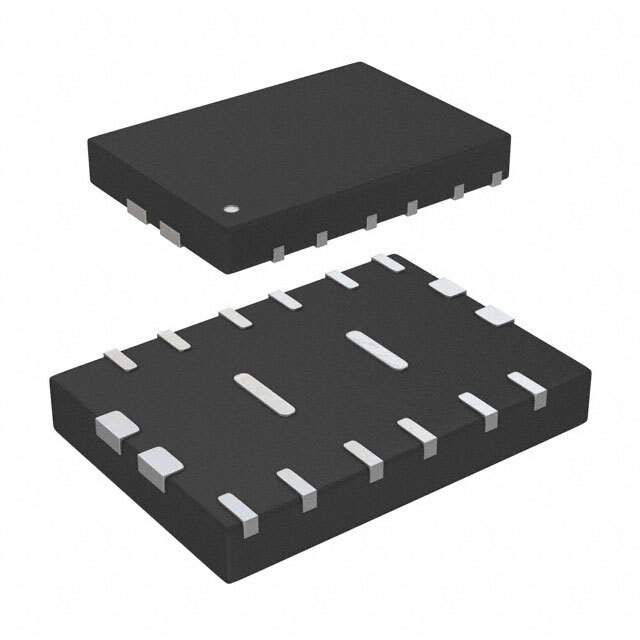

AOZ8312DI Real Image
Same model may have multiple batches, images only for reference.

AOZ8312DI

Part No AOZ8312DI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 2.5V 9V 12DFN / Low Capacitance 2.5 V TVS Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
Type Steering (Rail to Rail)
Unidirectional Channels 5
Voltage - Reverse Standoff (Typ) 2.5V (Maximum)
Voltage - Breakdown (Min) 2.8V
Voltage - Clamping (Maximum) at Ipp 9V
Current - Peak Pulse (10/1000μs) 18A (8/20μs)
Power - Peak Pulse 160W
Power Line Protection Yes
Applications Use For General
Capacitance at Frequency 2.3pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 12-UFDFN Exposed Pad
Supplier Device Package 12-DFN-EP (3.5x2.5)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808239-AOZ8312DI
Ultra Librarian 3D Model Ultra Librarian AOZ8312DI CAD Model

Description

The AOZ8312DI is a steering (rail to rail) type electronic component manufactured by Alpha & Omega Semiconductor Inc.

  • Supplier Device Package: 12-DFN-EP (3.5x2.5)
  • Maximum Voltage - Reverse Standoff: 2.5V
  • Voltage Breakdown Minimum: 2.8V
  • Channels: 5 Unidirectional
  • Use: General
  • Power Peak Pulse: 160W
  • Power Line Protection: Included
  • Clamping Voltage: 9V @ Ipp
  • Capacitance @ Frequency: 2.3pF @ 1MHz
  • Supply & Demand: Balanced
