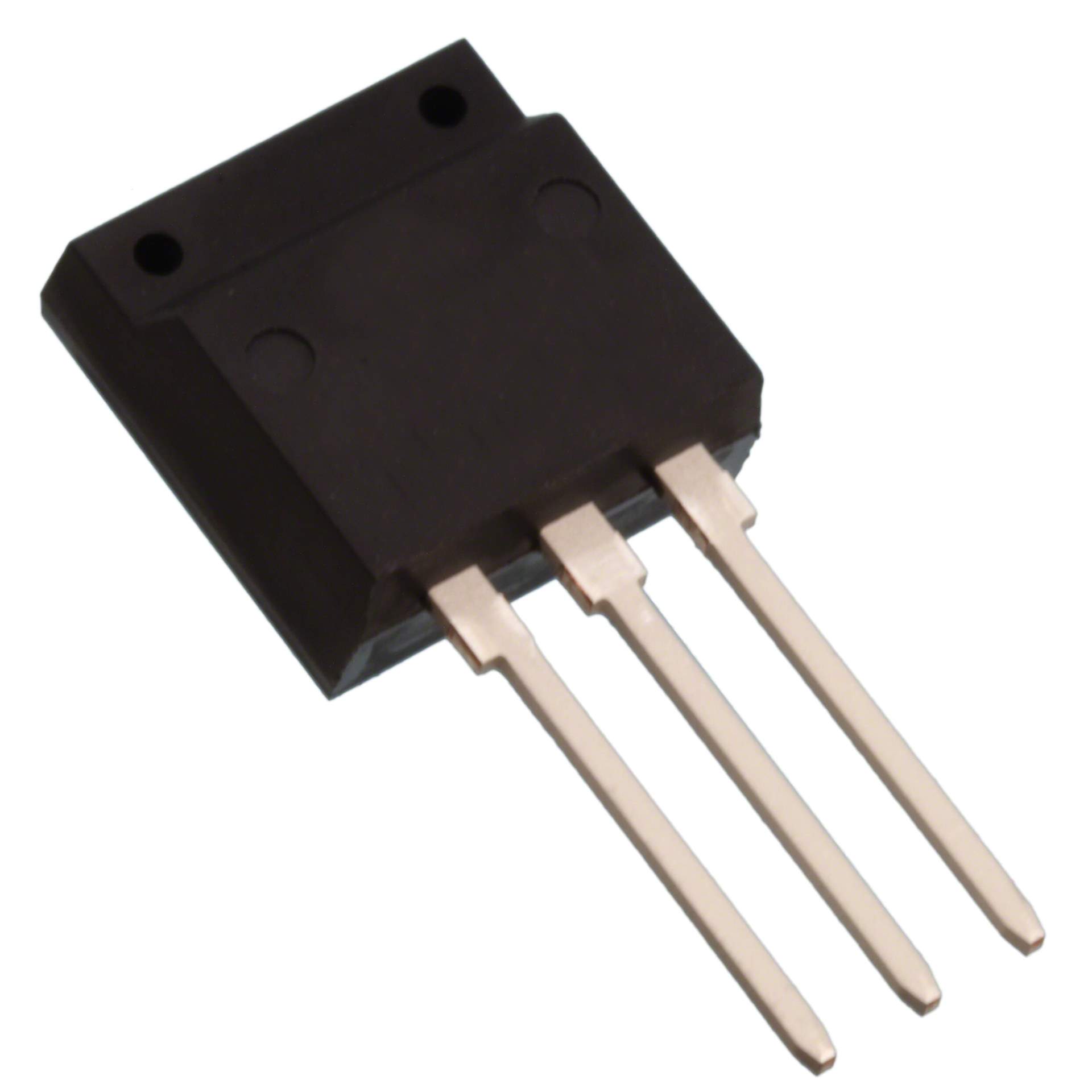

The WF25S65 is a 650V Silicon Carbide (SiC) MOSFET from Alpha & Omega Semiconductor Inc. SiC MOSFETs offer superior performance compared to traditional silicon MOSFETs, especially in high-voltage and high-frequency applications. They are known for their lower switching losses and higher efficiency.

Applications

• Power Factor Correction (PFC): Improving the power factor in AC-DC power supplies.
• Solar Inverters: Converting DC power from solar panels to AC power.
• Electric Vehicle (EV) Chargers: Charging batteries in electric vehicles.
• Uninterruptible Power Supplies (UPS): Providing backup power in the event of a power outage.
• High-Voltage DC-DC Converters: Converting DC voltage levels in high-power applications.

Features

• 650V Breakdown Voltage: Supports high-voltage applications.
• Silicon Carbide (SiC) Technology: Offers superior performance compared to silicon MOSFETs.
• Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
• Fast Switching Speed: Enables high-frequency operation.
• High Avalanche Ruggedness: Withstands transient voltage spikes and overvoltage conditions.
• Low Gate Charge (Qg): Reduces switching losses.
• RoHS Compliant: Complies with environmental regulations, ensuring lead-free construction.

Benefits

• High Efficiency: Low RDS(on) and low gate charge reduce power losses, improving overall efficiency.
• Improved Thermal Performance: Reduced power loss minimizes heat generation, enhancing reliability.
• Fast Switching: Enables high-frequency operation and reduces the size of passive components.
• Robustness: High avalanche ruggedness provides protection against voltage transients.
• Simplified Design: Easier to drive compared to some other SiC MOSFETs.

Additional Details

The WF25S65's gate threshold voltage (VGS(th)) is an important parameter for determining the activation point of the MOSFET. The drain current (ID) rating depends on the operating temperature and cooling conditions. The datasheet provides information on the safe operating area (SOA) to prevent damage. Proper gate drive circuitry is essential for optimizing the performance of the SiC MOSFET. The thermal resistance from junction to case (RthJC) is crucial for calculating the junction temperature and ensuring reliable operation.
