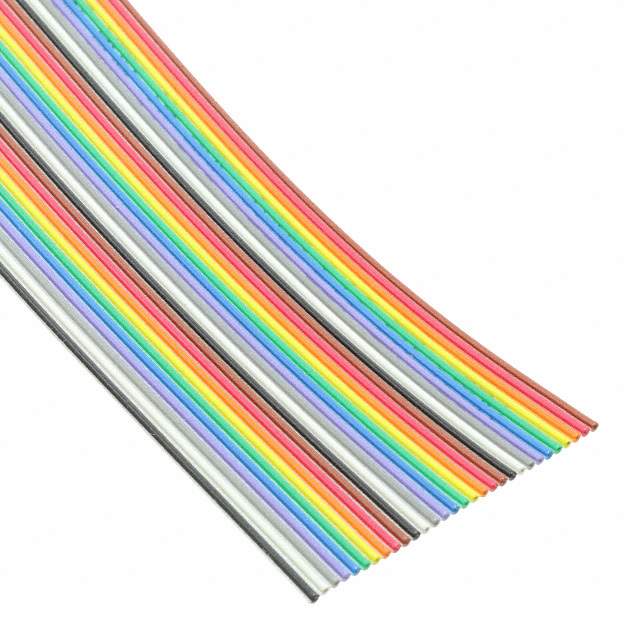

3553 MC005 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr Alpha Wire
Series MIL-DTL-16878/1 Type B
Package Spool
Cable Type Flat Cable
Number of Conductors 30
Pitch 0.039" (1.00mm)
Length 100.0' (30.48m)
Wire Gauge 26 AWG
Conductor Strand 7 Strands / 34 AWG
Shielding Unshielded
Jacket Color Multiple
Ribbon Thickness 0.039" (0.99mm)
Ribbon Width 1.170" (29.72mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 600 V
Temperature Range - Operating -20°C ~ 105°C
Ratings UL Style 2713
Conductor Material Copper, Tinned
Base Product Number 3553
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 3553MC005-100,3553MC005,3553MC005-ND,3553 MC005-ND
Standard Package 1
Win Source Part Number 1010727-3553 MC005
Ultra Librarian 3D Model Ultra Librarian 3553 MC005 CAD Model

Description

The 3553 MC005 Flat Ribbon Cable is a high-quality cable that is designed for use in various applications that require a flat cable.

  • Manufacturer: Alpha Wire
  • Cable Type: Flat Ribbon Cable
  • Length: 100.0' (30.48m)
  • Number of Conductors: 30
  • Shielded: Yes
  • Voltage Rating: 600V
  • Temperature Range: -20°C to 105°C
  • UL Style: 2713
  • RoHS Compliant: Yes
  • Applications: Robotics, Automation
