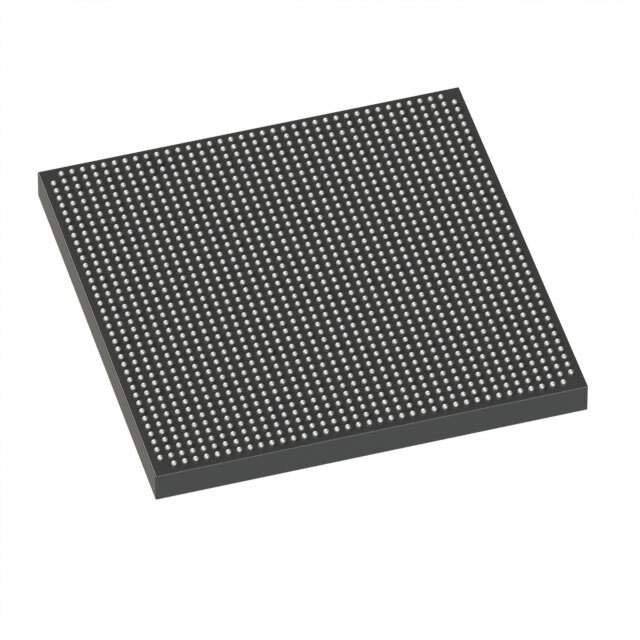

5SGXEA9K3H40C2N Real Image
Same model may have multiple batches, images only for reference.

5SGXEA9K3H40C2N

Part No 5SGXEA9K3H40C2N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 696 I/O 1517HBGA
Datasheet
5SGXEA9K3H40C2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix V GX
Number of LABs/CLBs 317000
Number of Logic Elements/Cells 840000
Total RAM Bits 64210944
Number of I/O 696
Operating Supply Voltage 0.87 V ~ 0.93 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 1517-BBGA, FCBGA
Manufacturer Package 1517-HBGA (45x45)
Manufacturer Homepage www.altera.com
Win Source Part Number 736526-5SGXEA9K3H40C2N
Popularity Medium
Supply and Demand Status Limited
Family Name 5SGXA9
Introduction Date April 01, 2010
ECCN 3A001.a.7.a
Country of Origin Unknown
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 5SGXEA9K3H40C2N CAD Model

Description

The Altera Stratix V GX series 5SGXEA9K3H40C2N is an integrated circuit that is designed for high-performance applications.

  • LABs/CLBs: 317000
  • Logic Elements/Cells: 840000
  • I/Os: 696
  • Operating Temperature: 0°C to 85°C (TJ)
  • Total RAM Bit: 64210944
  • Package Size: 1517-BBGA
  • Mounting Type: Surface Mount
  • Operating Supply Voltage: 0.87 V to 0.93 V
  • Family: 5SGXA9
  • Category: Integrated Circuits (ICs)
  • Estimated EOL Date: 2025
