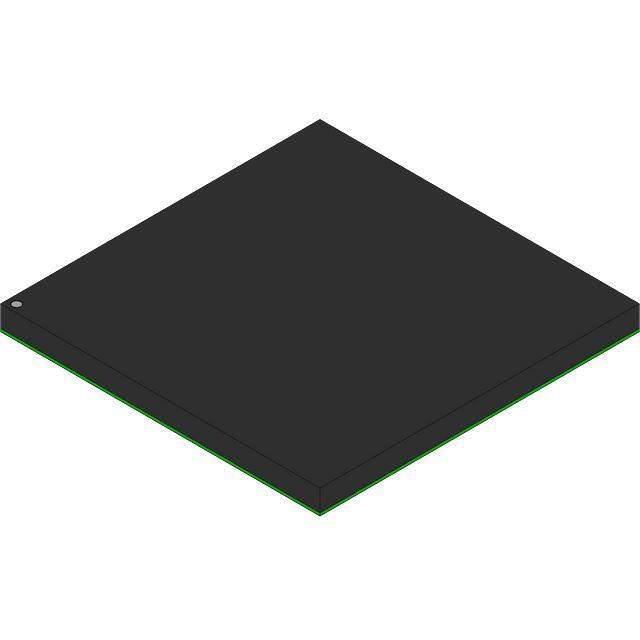

EP1S40B956C6N Real Image
Same model may have multiple batches, images only for reference.

EP1S40B956C6N

Part No EP1S40B956C6N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 683 I/O 956BGA
Datasheet
EP1S40B956C6N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix
Number of LABs/CLBs 4125
Number of Logic Elements/Cells 41250
Total RAM Bits 3423744
Number of I/O 683
Operating Supply Voltage 1.425 V ~ 1.575 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 956-BBGA, FCBGA
Manufacturer Package 956-BGA (40x40)
Manufacturer Homepage www.altera.com
RoHS State Request Verification
Win Source Part Number 738091-EP1S40B956C6N
Popularity Medium
Supply and Demand Status Limited
Family Name EP1S40
Introduction Date September 06, 2001
ECCN 3A001.a.7.a
Country of Origin Unknown
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian EP1S40B956C6N CAD Model

Description

The Altera EP1S40B956C6N is a Stratix series integrated circuit designed for use in electronic devices.

  • Logic Elements/Cells: 41250
  • LABs/CLBs: 4125
  • I/Os: 683
  • Operating Supply Voltage: 1.425 V to 1.575 V
  • Package: 956-BBGA/FCBGA
  • Obsolete: Yes
