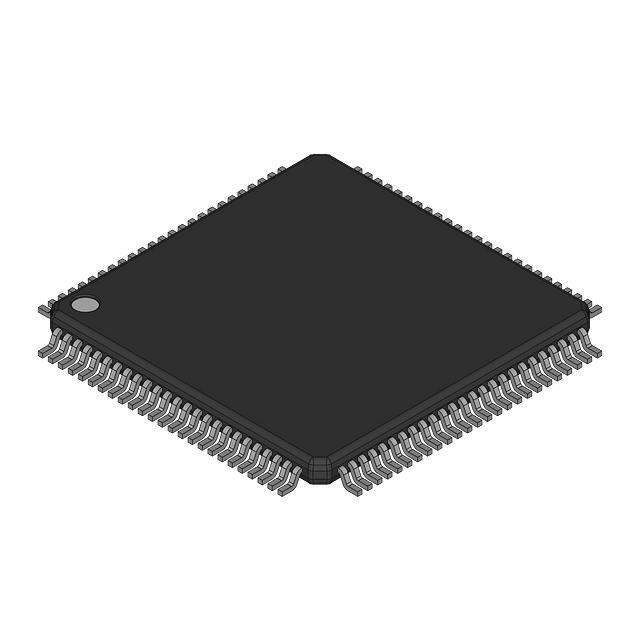

EPM7256BTC100-10 Real Image
Same model may have multiple batches, images only for reference.

EPM7256BTC100-10

Part No EPM7256BTC100-10
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 10NS 100TQFP / CPLD MAX® 7000B Family 5K Gates 256 Macro Cells 94.3MHz 2.5V 100-Pin TQFP Tray
Datasheet
EPM7256BTC100-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000B
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 2.375 V ~ 2.625 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 84
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 100-TQFP
Manufacturer Package 100-TQFP (14x14)
Win Source Part Number 774193-EPM7256BTC100-10
Popularity Medium
Supply and Demand Status Limited
Quantity per package 90
Family Name EPM7256B
Introduction Date October 08, 1998
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256BTC100-10 CAD Model

Description

The Altera EPM7256BTC100-10 is an in-system programmable programmable type with 5000 gates and 256 macrocells.

  • Internal Voltage Supply: 2.375V to 2.625V
  • Delay Time: tpd(1) max 10.0ns
  • Package: 100-TQFP
  • Mounting: SMD
  • I/Os: 84
  • Logic Elements/Blocks: 16
  • Series: MAX 7000B
  • Family Name: EPM7256B
  • Obsolete: Yes
  • Estimated EOL Date: Passed
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Tray Quantity: 90
