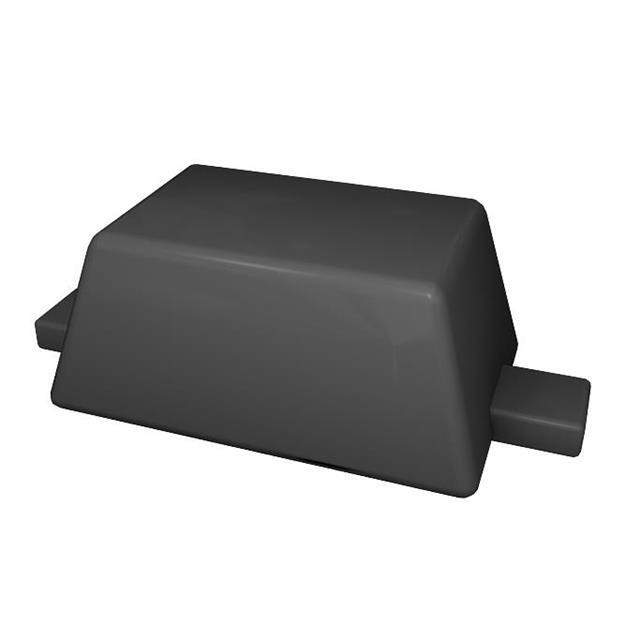

AZ5013-01H

Name: AZ5013-01H
Brand: Amazing
SKU: 1381512
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AZ5013-01H
Manufacturer	Amazing
Catalog	TVS - Diodes
Description	TVS DEVICE 1-CHANNEL 3.3V / Clamp Ipp Tvs Diode Surface Mount SOD-523
Datasheet	AZ5013-01H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr	Amazing
Series	-
Package	Strip
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	-
Power - Peak Pulse	-
Power Line Protection	No
Applications	General
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 85°C (TC)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
REACH Status	Vendor Undefined
Standard Package	10 pcs
Win Source Part Number	1381512-AZ5013-01H
Ultra Librarian 3D Model	Ultra Librarian AZ5013-01H CAD Model

Alternative Products

Description

The Amazing 1381512-AZ5013-01H is a Zener type TVS diode.

Type: TVS Diode, Zener
Application: General Circuit Protection
Reverse Standoff Voltage (Max): 3.3V
Breakdown Voltage (Min): 4.5V
Polarity: Unidirectional
Channels: 1
Mounting Type: Surface Mount
Package: SC-79, SOD-523
REACH: Not Affected
Manufacturer: Amazing
