Same model may have multiple batches, images only for reference.

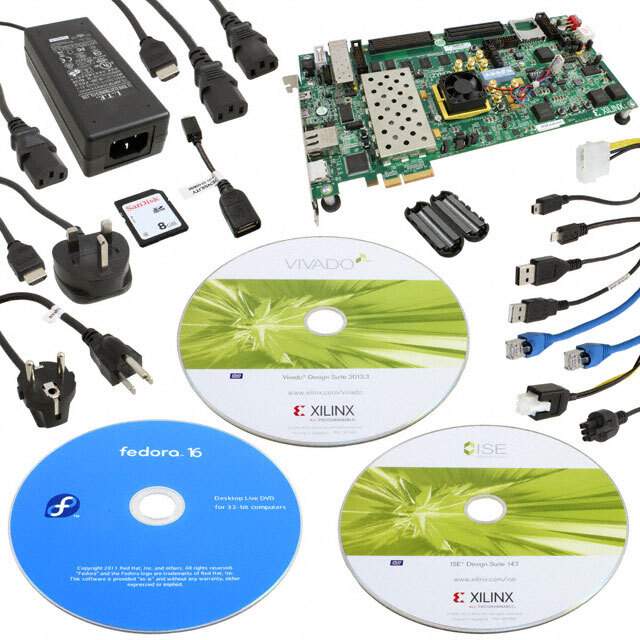

EK-Z7-ZC706-G Real Image
Same model may have multiple batches, images only for reference.

EK-Z7-ZC706-G

Part No EK-Z7-ZC706-G
Manufacturer Amd
Catalog Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Description EVALUATION KIT ZYNQ-7000 ZC706 / Zynq-7000 AP SoC ZC706 PCIe Card XC7Z045 Zynq®-7000 FPGA + MCU/MPU SoC Evaluation Board
Datasheet
EK-Z7-ZC706-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr AMD
Series Zynq®-7000
Package Box
Type FPGA + MCU/MPU SoC
For Use With/Related Products XC7Z045
Platform Zynq-7000 AP SoC ZC706 PCIe Card
Contents Board(s) , Cable(s) , Power Supply, Accessories
Interconnect System FMC, Pmod
Suggested Programming Environment Vivado
Base Product Number XC7Z045
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8471.50.0150
Win Source Part Number 1338439-EK-Z7-ZC706-G
Ultra Librarian 3D Model Ultra Librarian EK-Z7-ZC706-G CAD Model

Description

This development board is designed for electronic components and is an evaluation board for embedded complex logic (FPGA, CPLD).

  • Type: Evaluation Board
  • Function: FPGA + MCU/MPU SoC
  • Series: Zynq-7000
  • Package: Box
  • For Use With/Related Products: XC7Z045
  • Standard Package: 1
  • Supplied Contents: Board(s), Cable(s), Power Supply, Accessories
  • Platform: Zynq-7000 AP SoC ZC706 PCIe Card
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8471.50.0150
  • Manufacturer: AMD
  • Base Product Number: XC7Z045
  • Suggested Programming Environment: Vivado
  • Interconnect System: FMC, Pmod
