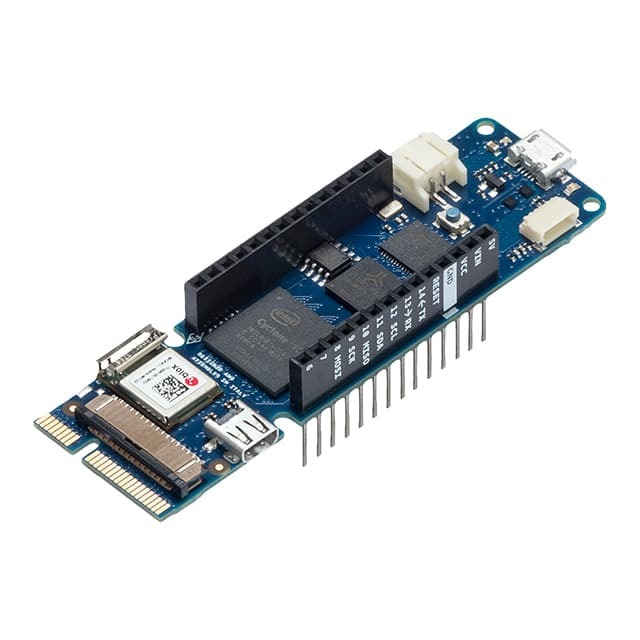

ABX00022 Arduino
Same model may have multiple batches, images only for reference.

ABX00022

Part No ABX00022
Manufacturer Arduino
Catalog Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Description ARDUINO MKR VIDOR 4000 / Cyclone 10 LP FPGA MKR VIDOR 4000 10CL016 Cyclone? 10 LP FPGA Evaluation Board
Datasheet
ABX00022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr Arduino
Series Cyclone® 10 LP
Package Bulk
Product Status Active
Type FPGA
For Use With/Related Products 10CL016
Platform Cyclone 10 LP FPGA MKR VIDOR 4000
Contents Board(s)
Utilized IC / Part 10CL016
Base Product Number 10CL016
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN 5A002A1
HTSUS 8517.62.0090
Win Source Part Number 999057-ABX00022
Ultra Librarian 3D Model Ultra Librarian ABX00022 CAD Model

Description

The Cyclone® 10 LP evaluation board with Win Source Part Number 999057-ABX00022 is a versatile development tool for complex logic applications.

  • Developer: Arduino
  • FPGA: Cyclone 10 LP
  • Package: bulk
  • Includes: necessary board(s) for evaluation and development
  • Designed for Use With: 10CL016 FPGA
  • Compatible With: Cyclone 10 LP FPGA MKR VIDOR 4000 platform
  • Product Status: active
  • REACH: not affected
