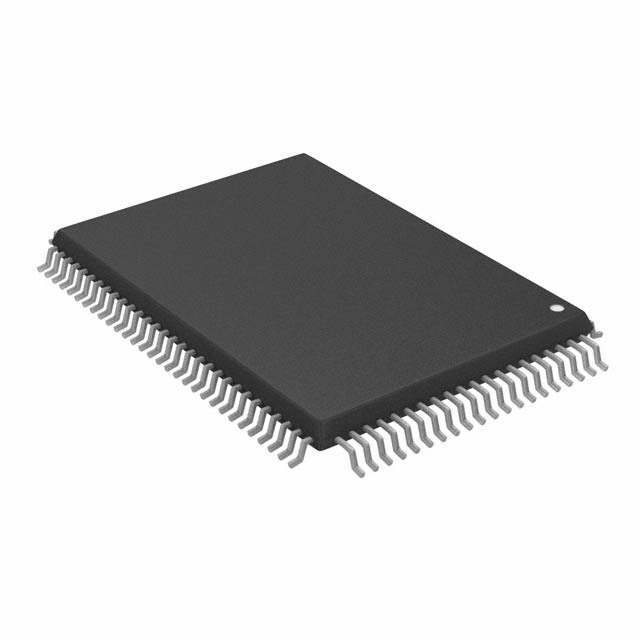

Same model may have multiple batches, images only for reference.
XC95144-7PQ100C AMD
Same model may have multiple batches, images only for reference.

XC95144-7PQG100C

Part No XC95144-7PQG100C
Manufacturer Amd
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 144MC 7.5NS 100QFP
Datasheet
XC95144-7PQG100C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309601-XC95144-7PQG100C
Category Integrated Circuits (ICs) >Embedded >CPLDs (Complex Programmable Logic Devices)
Manufacturer AMD
Packaging  Tray
Part Status Obsolete
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 7.5 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 8
Number of Macrocells 144
Number of Gates 3200
Ultra Librarian 3D Model Ultra Librarian XC95144-7PQG100C CAD Model

Description

The XC95144 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 3,200 usable gates with propagation delays of 7.5 ns. See Figure 2 for the architecture overview.
