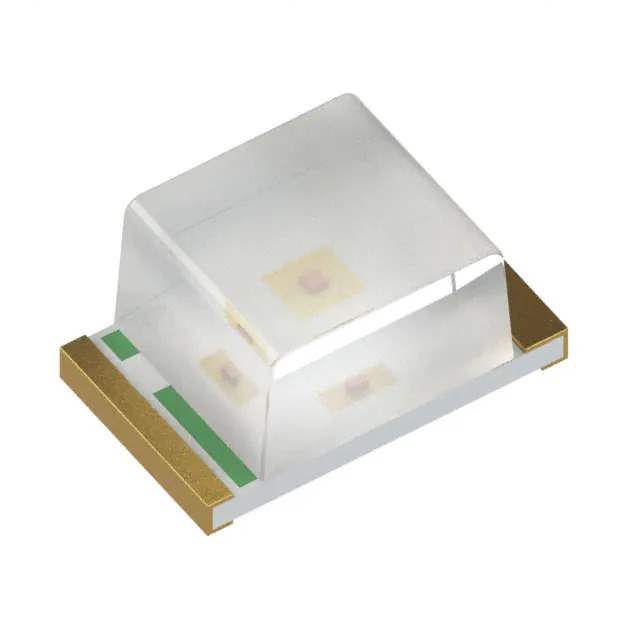

Same model may have multiple batches, images only for reference.

BL-HB535A-TRB

Name: BL-HB535A-TRB
Brand: American Bright Optoelectronics Corporation
SKU: 850841
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BL-HB535A-TRB
Manufacturer	American Bright Optoelectronics Corporation
Catalog	LED Indication - Discrete
Description	0805 ULTRA BLUE CLEAR SMT / Blue LED Indication - Discrete 3.5V 0805 (2012 Metric)
Datasheet	BL-HB535A-TRB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	American Bright Optoelectronics Corporation
Package	Tape & Reel
Product Status	Active
Color	Blue
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	100mcd
Lens Style	Rectangle with Flat Top
Lens Size	1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)	3.5V
Current - Test	20mA
Viewing Angle	120°
Mounting Type	Surface Mount
Wavelength - Peak	470nm
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Size / Dimension	2.00mm L x 1.25mm W
Height (Max)	1.20mm
Base Product Number	BL-HB535
Standard Package	3,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	850841-BL-HB535A-TRB
Ultra Librarian 3D Model	Ultra Librarian BL-HB535A-TRB CAD Model

Alternative Products

Description

The American Bright Optoelectronics Corporation LED indication component is a discrete LED with a blue color.

Package: Tape and reel
Pieces per Package: 3,000
Size: 2.00mm L x 1.25mm W
Viewing Angle: 120°
Millicandela Rating: 100mcd
Forward Voltage: 3.5V
Test Current: 20mA
Wavelength Peak: 470nm
Height: 1.20mm
