Same model may have multiple batches, images only for reference.

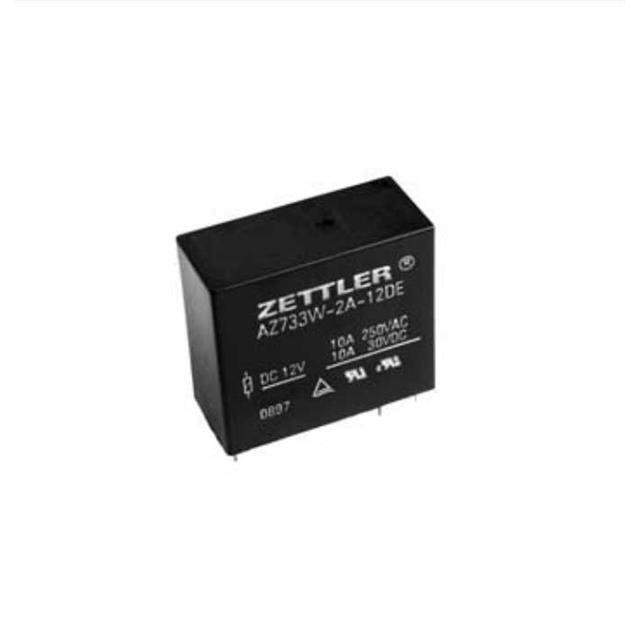

AZ733W-2AE-12DE Real Image
Same model may have multiple batches, images only for reference.

AZ733W-2AE-12DE

Part No AZ733W-2AE-12DE
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 12A 12V / General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Datasheet
AZ733W-2AE-12DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 12 A
Switching Voltage 277VAC, 250VDC - Max
Coil Current 66.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1340143-AZ733W-2AE-12DE
Ultra Librarian 3D Model Ultra Librarian AZ733W-2AE-12DE CAD Model

Description

The American Zettler AZ733W-2AE-12DE relay is a DPST-NO relay with a coil voltage of 12VDC.

  • Contact Form: DPST-NO
  • Coil Voltage: 12VDC
  • Contact Rating: 12A
  • Switching Voltage: 277VAC and 250VDC
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 180Ω
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through-Hole
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Seal Rating: Sealed, Fully
  • Packaging Type: Tray
