Same model may have multiple batches, images only for reference.

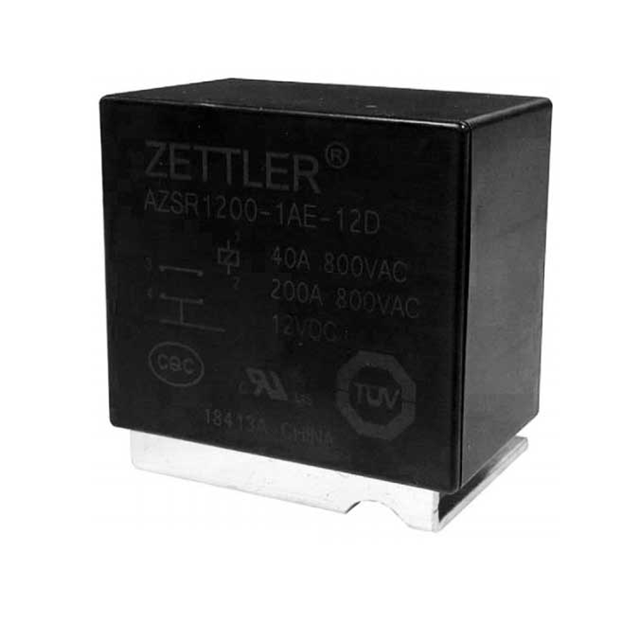

AZSR1200-1AE-12D Real Image
Same model may have multiple batches, images only for reference.

AZSR1200-1AE-12D

Part No AZSR1200-1AE-12D
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY EV CHG SOLAR SPST 200A 12V / EV Charging, Solar Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
AZSR1200-1AE-12D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 200 A
Switching Voltage 920VAC - Max
Coil Current 250 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 40 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type EV Charging, Solar
Coil Resistance 48 Ohms
Base Product Number AZSR1200
Standard Package 5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1339764-AZSR1200-1AE-12D
Ultra Librarian 3D Model Ultra Librarian AZSR1200-1AE-12D CAD Model

Description

The AZSR1200-1AE-12D is a power relay with an SPST-NO (1 Form A) contact form manufactured by American Zettler.

  • Contact Rating (Current): 200A
  • Switching Voltage: 920VAC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 48 Ohms
  • Operate Time: 40ms
  • Release Time: 15ms
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 85°C
  • Category: Relays - Power Relays, Over 2 Amps
