Same model may have multiple batches, images only for reference.

OQ0371510000G

Name: OQ0371510000G
Brand: Amphenol Anytek
SKU: 1332128
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	OQ0371510000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets

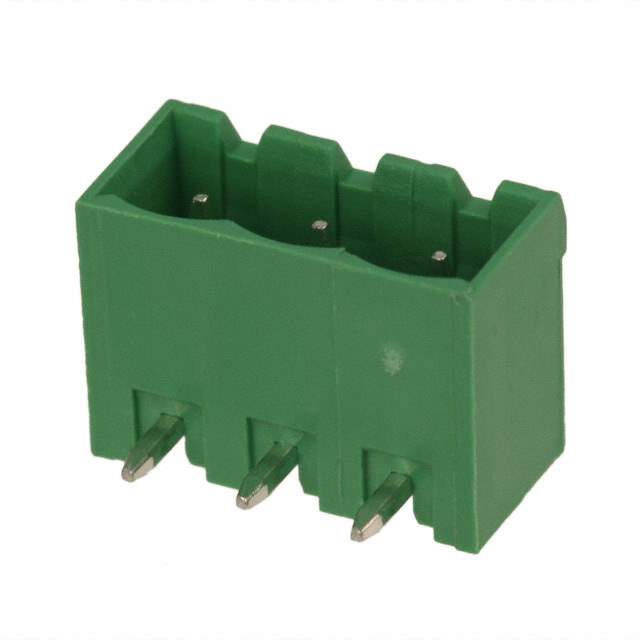

Description	TERM BLOCK HDR 3POS 90DEG 5MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Datasheet	OQ0371510000G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Amphenol Anytek
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.335" (8.51mm)
Base Product Number	OQ03
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	609-3864,OQ03715100J0G,20020110-G031A01LF,OQ0371510000GINACTIVE,OQ03715100J0G-ND,20020110G031A01LF,OQ0371510000G-ND
Standard Package	2,250
Win Source Part Number	1332128-OQ0371510000G
Ultra Librarian 3D Model	Ultra Librarian OQ0371510000G CAD Model

Alternative Products

Description

The Amphenol Anytek electronic component has a Win Source Part Number of 1332128-OQ0371510000G.

Product Category: connector, interconnect
Sub-Category: terminal blocks, headers, plugs, and sockets
Type: header, male pins, shrouded (4 side)
Positions Per Level: three
Levels: one
Pitch: 0.197 inches (5.00mm)
Header Orientation: 90 degrees, right-angle
Termination Style: solder
Current-UL: 12A
Voltage-UL: 300V
Color: green
Contact Mating Finish: tin
Contact Material: copper alloy
Mounting: through-hole mounted
Temperature Range: -40 degrees Celsius to 115 degrees Celsius
