Same model may have multiple batches, images only for reference.

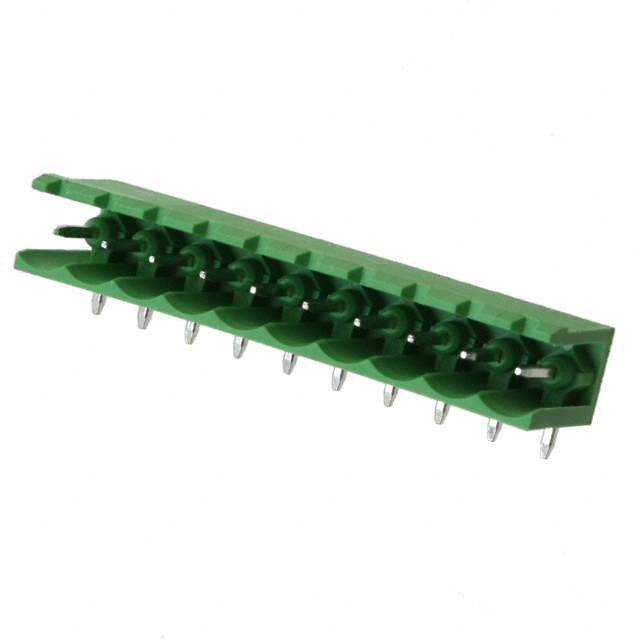

OQ1070510000G Real Image
Same model may have multiple batches, images only for reference.

OQ1070510000G

Part No OQ1070510000G
Manufacturer Amphenol Anytek
Catalog Terminal Blocks
Description TERM BLOCK HDR 10POS 90DEG 5MM / 10 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Datasheet
OQ1070510000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr Amphenol Anytek
Series 06-500
Package Bulk
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 10
Positions Per Level 10
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - UL 12 A
Voltage - UL 300 V
Color Green
Temperature Range - Operating -40°C ~ 115°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Thermoplastic Resin
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.335" (8.51mm)
Base Product Number OQ10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names OQ1070510000G-ND,OQ10705100J0G,OQ1070510000GINACTIVE,20020109G101A01LF,OQ10705100J0G-ND,609-4262,20020109-G101A01LF
Standard Package 140
Win Source Part Number 1185675-OQ1070510000G
Ultra Librarian 3D Model Ultra Librarian OQ1070510000G CAD Model

Description

The Amphenol Anytek 06-500 series male pin header is a through-hole connector that is designed for use in terminal blocks.

  • Positions per Level: 10
  • Levels: 1
  • Pitch: 0.197 inches (5.00mm)
  • Shrouded: Both Sides
  • Orientation: Right-Angle (90 degrees)
  • Housing Color: Green
  • Housing Material: Thermoplastic Resin
  • Flammability Rating: UL94 V-0
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Termination Style: Solder
  • Insulation Height: 0.335 inches (8.51mm)
  • Operating Temperature: -40 to 115 degrees Celsius
  • Maximum Current: 12 A
  • Maximum Voltage: 300 V
  • Contact Tail Length: 0.138 inches (3.50mm)
  • Package: Bulk
  • Quantity per Bulk: 140
