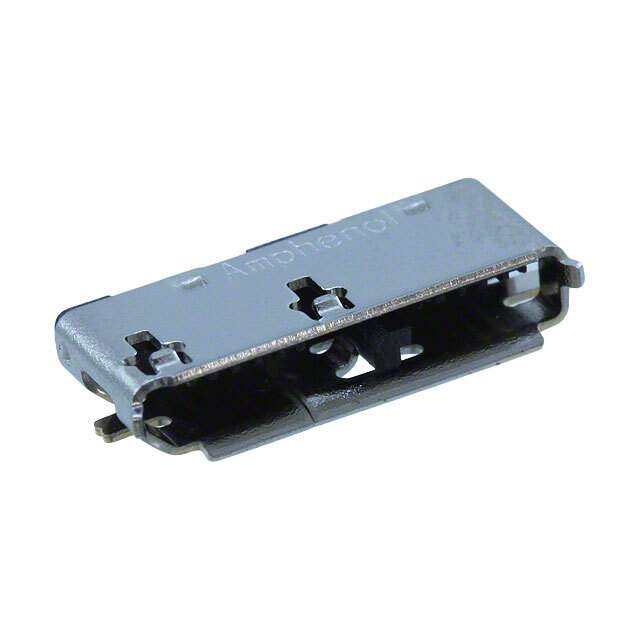

Same model may have multiple batches, images only for reference.

GSB343133HR

Name: GSB343133HR
Brand: Amphenol Commercial Products
SKU: 805558
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	GSB343133HR
Manufacturer	Amphenol Commercial Products
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB3.0 MICRO B SMD R/A / USB 3.0 CONNECTOR Micro-B Receptacle R/A SMT TYPE
Datasheet	GSB343133HR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (Commercial Products)
Packaging	Reel
Connector Type	USB - micro B
Number of Contacts	10
Gender	Receptacle
Specifications	USB 3.0 (USB 3.1 Gen 1, Superspeed)
Mounting Style	Surface Mount, Right Angle
Mounting Feature	Horizontal
Termination	Solder
Features	Solder Retention
Temperature Range - Operating	-20°C ~ 60°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.8A
Voltage - Rated	30VAC
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805558-GSB343133HR
Ultra Librarian 3D Model	Ultra Librarian GSB343133HR CAD Model

Description

The Amphenol ICC (Commercial Products) 805558-GSB343133HR is a USB micro B connector manufactured by Amphenol ICC (Commercial Products).

Contacts: 10
Mounting Style: Surface Mount Right Angle
Solder Retention: Yes
USB Specification: USB 3.0 (USB 3.1 Gen 1, Superspeed)
Voltage Rating: 30VAC
Mounting: Horizontal
Insulation Color: Black
Temperature Range: -20°C to 60°C
Shell/Shielding Material: Steel, Stainless
ECCN: EAR99
