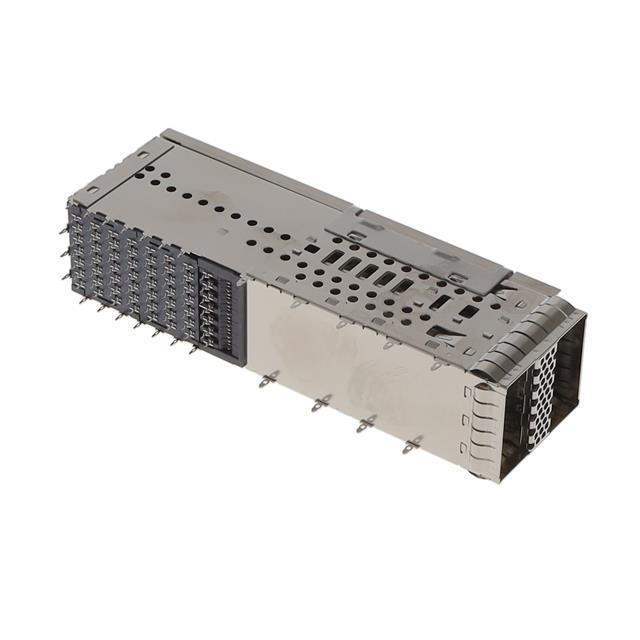

UE36-E16200-32BA1 Amphenol ICC (Commercial Products)
Same model may have multiple batches, images only for reference.

UE36-E16200-32BA1

Part No UE36-E16200-32BA1
Manufacturer Amphenol Commercial Products
Catalog Pluggable Connectors
Description QSFP DD CAGE 2X1 W/ HS FIN PIN H
Datasheet
UE36-E16200-32BA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307636-UE36-E16200-32BA1
Category Connectors, Interconnects> Pluggable Connectors >Pluggable Connector Assemblies
Manufacturer Amphenol ICC (Commercial Products)
Packaging Tray
Part Status Active
Connector Style Receptacle with Cage, Ganged (2x1) with Heat Sink
Connector Type QSFP-DD (Double Density)
Number of Positions 76
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Ultra Librarian 3D Model Ultra Librarian UE36-E16200-32BA1 CAD Model

Description

Each port supports up to 400Gb/s in aggregate over an 8 x 50Gb/s electrical interface. The cage and connector design provides backwards compatibility to QSFP28 modules which can be inserted into a QSFP DD port and connected to 4 of the 8 electrical channels. It is one of the industry’s leading multi-lane pluggable form factors used across Ethernet, Fibre Channel and InfiniBand.
