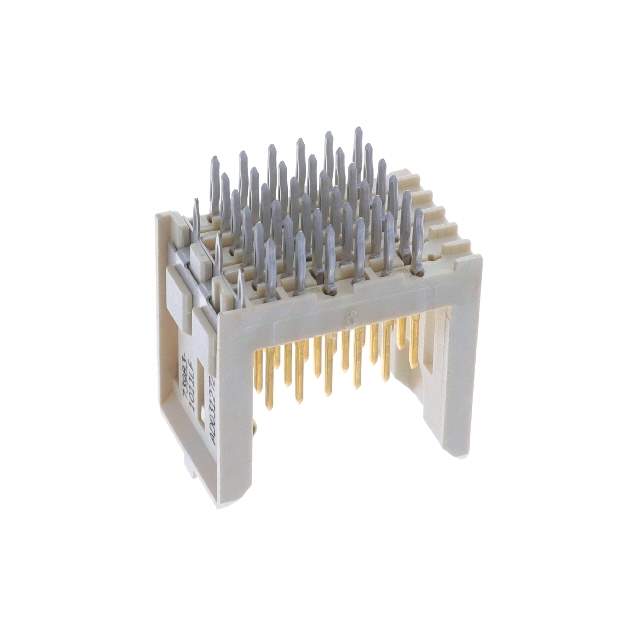

73983-1011LF Real Image
Same model may have multiple batches, images only for reference.

73983-1011LF

Part No 73983-1011LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description METRAL 1000 SIGNAL HDR STR PF
Datasheet
73983-1011LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series Metral 1000
Packaging Tube
Connector Type Header, Male Pins
Connector Style High Speed
Number of Positions 36
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Style Through Hole
Termination Press-Fit
Contact Layout, Typical 30 Signal, 6 Ground
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Natural
Current Rating 1A
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Win Source Part Number 764745-73983-1011LF
Popularity Medium
Supply and Demand Status Limited
Family Name 73983
Introduction Date May 25, 2004
ECCN EAR99
Country of Origin India
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 73983-1011LF CAD Model

Description

The Amphenol FCI 764745-73983-1011LF from Amphenol FCI is a Metral 1000 series connector.

  • Connector Type: Header, male pins
  • Packaging: Tube
  • Positions: 36
  • Pitch: 0.079" (2.00mm)
  • Mounting Style: Through-hole
  • Shielded: Yes
  • Color: Natural
  • Operating Temperature: -55°C ~ 105°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Connector Style: High-speed
  • Contact Layout: 30 Signal, 6 Ground
  • Current Rating: 1A
  • Material Flammability Rating: UL94 V-0
