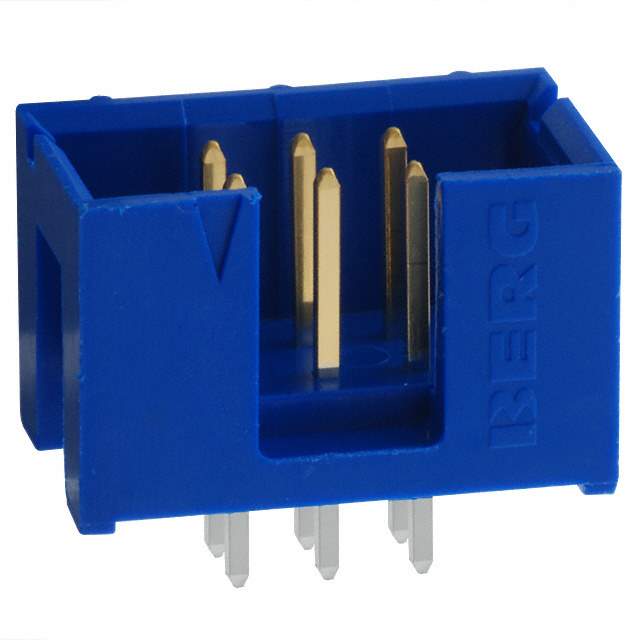

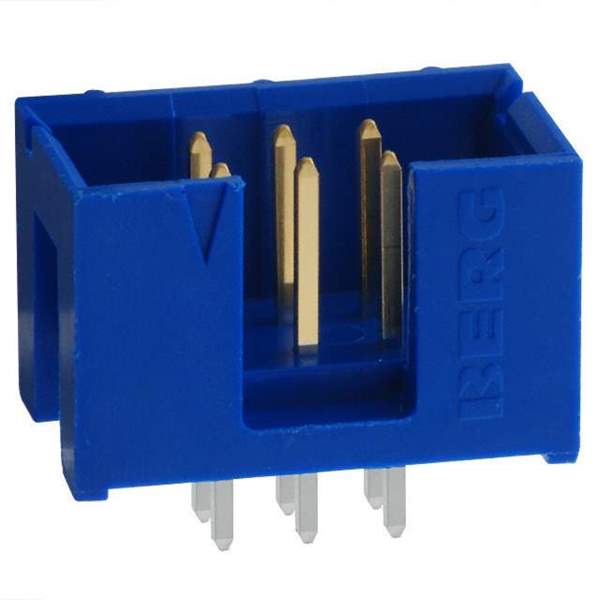

Same model may have multiple batches, images only for reference.

75869-131LF

Name: 75869-131LF
Brand: Amphenol FCI
SKU: 550943
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

Part No	75869-131LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	SHR.LP.HEADER STR DR TMT \| CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol ICC (FCI)
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.377" (9.57mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Contact Finish Thickness - Post	78.7μin (2.00μm)
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1133631-75869-131LF
Manufacturer Homepage	www.fciconnect.com
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian 75869-131LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 75869-131LF is a header connector manufactured by Amphenol ICC (FCI).

Supply and Demand Status: balanced
Positions: 6
Rows: 2
Pitch: 0.100" (2.54mm)
Features: keying slot, shrouded 4 wall
Fastening Type: push-pull
Contact Material: phosphor bronze
Mating Finish: gold
Post Finish: tin
Insulation Material: thermoplastic, glass-filled
Flammability Rating: UL94 V-0
Applications: industrial control systems, automotive, and telecommunications
