Same model may have multiple batches, images only for reference.

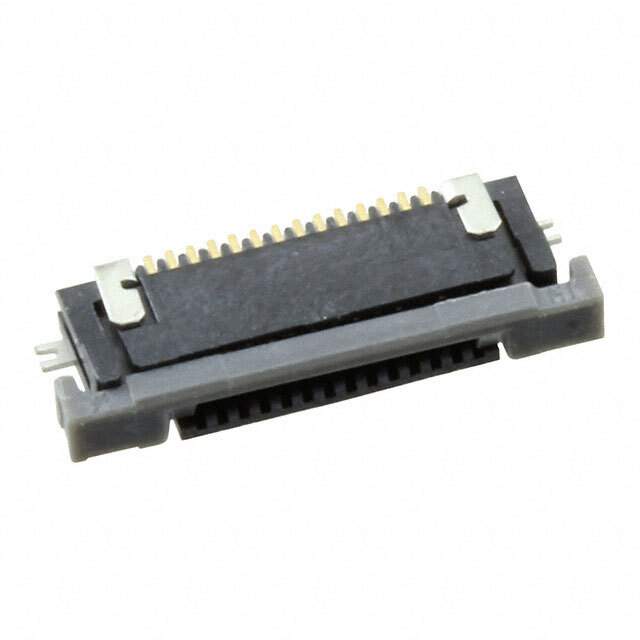

SFV14R-3STBE1HLF Real Image
Same model may have multiple batches, images only for reference.

SFV14R-3STBE1HLF

Part No SFV14R-3STBE1HLF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 14POS 0.50MM R/A / Conn FPC Connector RCP 14 POS 0.5mm Solder RA SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series SFV-R
Packaging Reel package
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 14
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.071" (1.80mm)
Locking Feature Slide Lock
Cable End Type Notched
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Black
Actuator Color Gray
Mating Cycles 20
Win Source Part Number 794164-SFV14R-3STBE1HLF
Popularity Medium
Supply and Demand Status Limited
Family Name SFV
Introduction Date January 14, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SFV14R-3STBE1HLF CAD Model

Description

The Amphenol FCI 794164-SFV14R-3STBE1HLF is an SFV-R series connector with 14 positions and a pitch of 0.020" (0.50mm).

  • Mounting Type: Surface Mount and Right Angle
  • Locking Feature: Slide Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Material: UL94 V-0 rated
  • Compliance: Halogen-free
