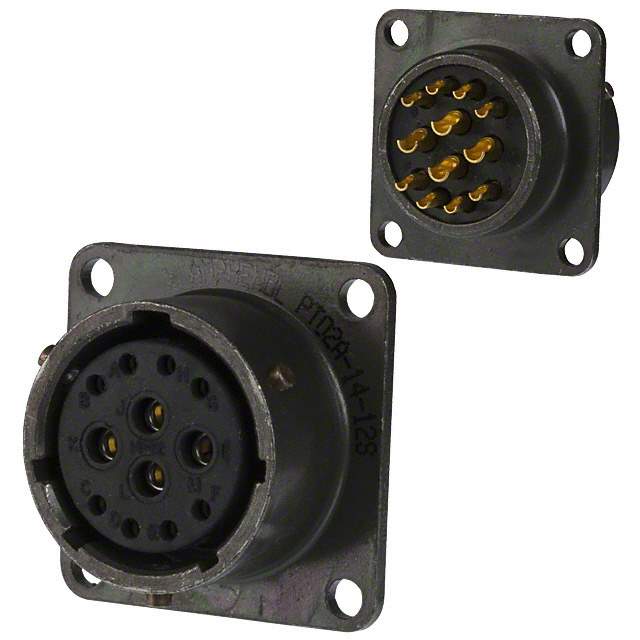

PT02A-14-12S Real Image
Same model may have multiple batches, images only for reference.

PT02A-14-12S

Part No PT02A-14-12S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT FMALE 12P SOLDER CUP / 12 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 12
Shell Size - Insert 14-12
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02A
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 7114621412S,PT02A14-12S,PT02A1412S,71-146214-12S,U71-146214-12S
Standard Package 1
Win Source Part Number 1041981-PT02A-14-12S
Ultra Librarian 3D Model Ultra Librarian PT02A-14-12S CAD Model

Description

The Amphenol Industrial Operations PT02A-14-12S is a circular connector that belongs to the MIL-DTL-26482 Series I, PT manufactured by Amphenol Industrial Operations.

  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Shell Size: 14-12
  • Shell Material: Aluminum
  • Shell Finish: Olive Drab Chromate over Cadmium
  • Contact Material: Copper Alloy
  • Contact Finish Mating: Gold
  • Application: Aerospace, Industrial, Instrumentation, Mass Transit, Military
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
  • Mounting Feature: Flange
  • Package Quantity: 1
  • Alternative Parts: PT02E-14-12P, MS3112E14-12P, PT00A-14-12S
