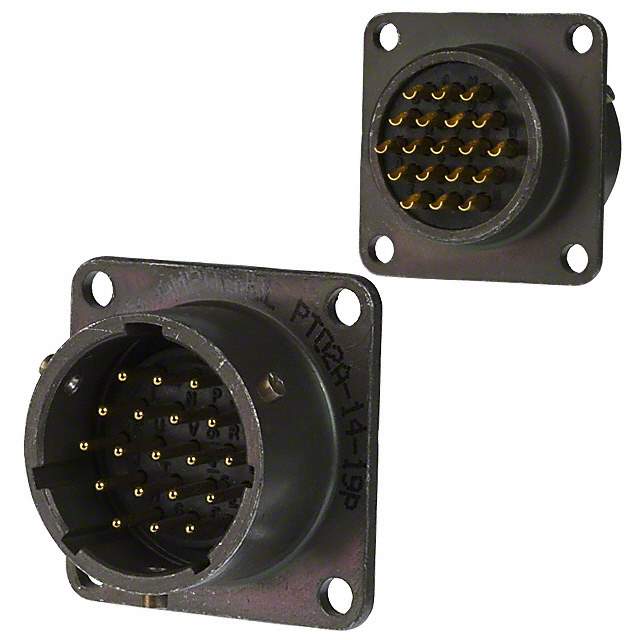

PT02A-14-19P Real Image
Same model may have multiple batches, images only for reference.

PT02A-14-19P

Part No PT02A-14-19P
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RECEPT 19POS W/PINS SOLDER / Conn Circular PIN 19 POS Solder ST Box Mount 19 Terminal 1 Port
Datasheet
PT02A-14-19P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Packaging Bulk
Connector Type Receptacle, Male Pins
Number of Positions 19
Shell Size - Insert 14-19
Mounting Panel Mount, Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material, Finish Aluminum, Olive Drab Cadmium Plated
Contact Finish Gold
Voltage Rating DC 600VAC
Current Rating 7.5A
Operating Temperature Range -55°C ~ 125°C
Win Source Part Number 792645-PT02A-14-19P
Popularity Medium
Supply and Demand Status Limited
Family Name PT
Introduction Date July 14, 2004
ECCN EAR99
Country of Origin China, Germany, Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT02A-14-19P CAD Model

Description

The Amphenol Industrial Operations 792645-PT02A-14-19P is a circular connector from the PT series by Amphenol Industrial Operations.

  • Series: MIL-DTL-26482 Series I
  • Positions: 19
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Mounting Type: Panel Mount with Flange
  • Shell Size Insert: 14-19
  • Contact Finish: Gold
  • Operating Temperature Range: -55°C to 125°C
  • Shell Material: Aluminum
  • Shell Finish: Olive Drab Cadmium Plated
  • ECCN: EAR99
  • Voltage Rating DC: 600VAC
