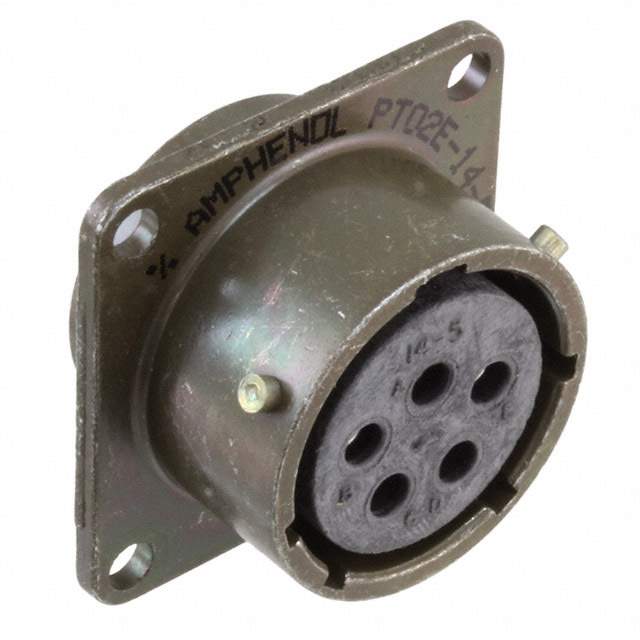

PT02E-14-5S Real Image
Same model may have multiple batches, images only for reference.

PT02E-14-5S

Part No PT02E-14-5S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT FMALE 5P GOLD SLDR CUP / 5 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert 14-5
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Sealed
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02E
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names U71-148214-05S,7114821405S,PT02E145S,71-148214-05S
Standard Package 1
Win Source Part Number 1231230-PT02E-14-5S
Ultra Librarian 3D Model Ultra Librarian PT02E-14-5S CAD Model

Description

The Amphenol Industrial Operations 1231230-PT02E-14-5S is a circular connector from the MIL-DTL-26482 Series I, PT series by Amphenol Industrial Operations.

  • Positions: 5
  • Color: Olive Drab
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Termination: Solder Cup
  • Shielding: Unshielded
  • Mounting: Panel Mount with Flange
  • Shell Size Insert: 14-5
  • Contact Finish: Gold
  • Operating Temperature: -55°C to 125°C
  • Shell Material: Aluminum
  • Shell Finish: Olive Drab Chromate over Cadmium
  • Insert Material: Neoprene
  • RoHS: Non-compliant
  • ECCN: EAR99
