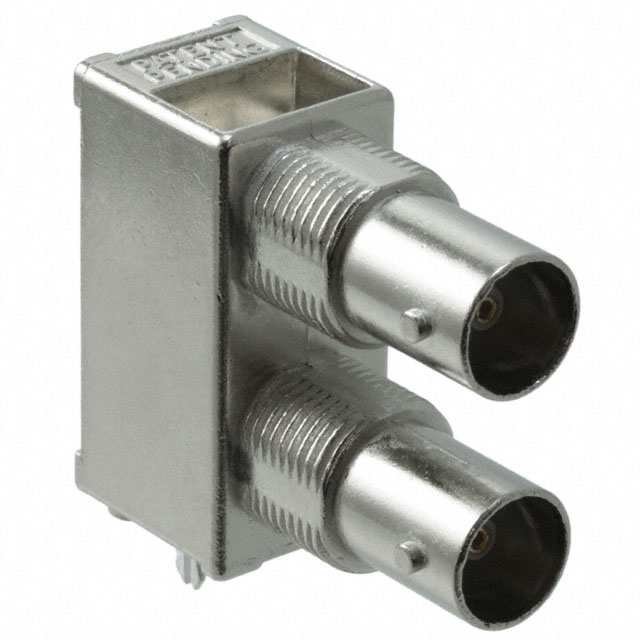

031-70508

Name: 031-70508
Brand: Amphenol-RF Division
SKU: 508712
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	031-70508
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF)
Description	CONN BNC JACK R/A 75 OHM PCB
Datasheet	031-70508 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol RF Division
Packaging	Tray
Status	Active
Connector Style	BNC
Connector Type	Jack, Female Sockets - Dual
Contact Termination	Solder
Shield Termination	Solder
Impedance	75 Ohm
Mounting	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Fastening Type	Bayonet Lock
Maximum Input Frequency	1GHz
Features	Board Lock
Housing Color	Silver
Body Material	Zinc Die Cast
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polypropylene (PP)
Temperature Range - Operating	-55°C to 85°C
Center Contact Material	Phosphor Bronze
Voltage Rating	500V
Mating Cycles	500
Insertion Loss	0.2dB
Win Source Part Number	1092050-031-70508
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 031-70508 CAD Model

Alternative Products

Description

The Amphenol RF Division 1092050-031-70508 is a BNC connector that features a dual female socket and a bayonet lock fastening type.

Material: zinc die-cast
Body Finish: nickel
Impedance: 75 Ohm
Voltage Rating: 500V
Mounting Style: panel mount, through-hole, and right-angle
Mounting Feature: bulkhead-front side nut mounting
Dielectric Material: polypropylene (PP)
Center Contact Material: phosphor bronze with gold plating
Insertion Loss: 0.2dB
Shield Termination: solder
Mating Cycles: 500
Temperature Range: -55°C to 85°C
Popularity: popular
Supply and Demand Status: balanced
