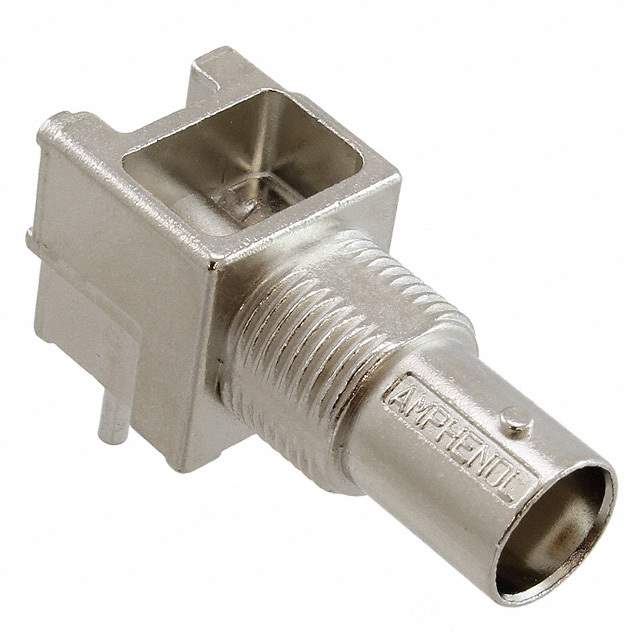

112990 Real Image
Same model may have multiple batches, images only for reference.

112990

Part No 112990
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC PLUG R/A 75 OHM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 75 Ohm
Mounting Free Hanging (In-Line), Right Angle
Cable Group RG-6 Double Braid, Belden 1694A
Fastening Type Bayonet Lock
Maximum Input Frequency 4GHz
Housing Color Silver
Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Center Contact Material Brass
Voltage Rating 500V
Mating Cycles 500
Win Source Part Number 1030870-112990
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 112990 CAD Model

Description

The Amphenol RF Division 1030870-112990 is a bayonet lock plug connector with male pin contact termination.

  • Mounting Style: free hanging (in-line), right-angle
  • Body Material: brass
  • Impedance: 75 Ohm
  • Maximum Input Frequency: 4GHz
  • Cable Groups: RG-6 double braid, Belden 1694A
  • Plating: nickel-plated
  • Includes: 4 pieces - 1 connector, 1 end cap, 1 ferrule, and 1 insulator
  • Applications: interconnects of electronic devices
