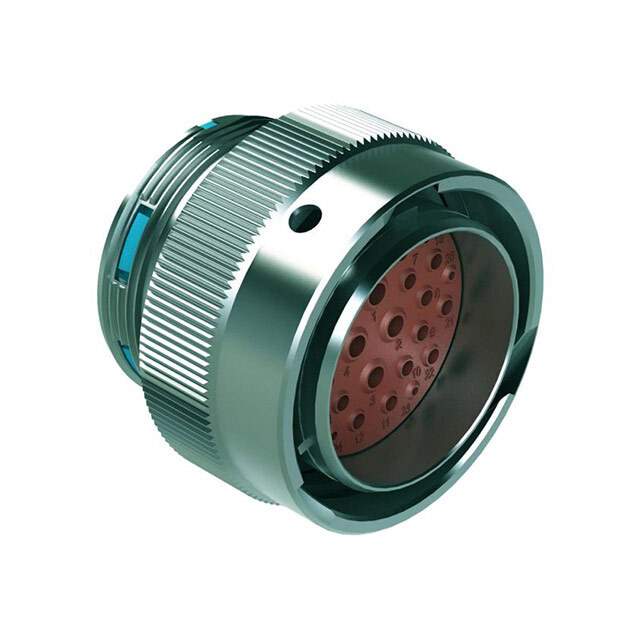

AHDM06-24-29PR Real Image
Same model may have multiple batches, images only for reference.

AHDM06-24-29PR

Part No AHDM06-24-29PR
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN PLUG HSNG MALE 29POS INLINE / 29 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Datasheet
AHDM06-24-29PR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol Sine Systems Corp
Series DuraMate™ AHDM
Package Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 29
Shell Size - Insert 24-29
Contact Type Crimp
Contact Size 12 (4), 16 (19), 20 (6)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Zinc Alloy
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number AHDM06
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names 889-3075
Standard Package 50
Win Source Part Number 1003072-AHDM06-24-29PR
Ultra Librarian 3D Model Ultra Librarian AHDM06-24-29PR CAD Model

Description

The Amphenol Sine Systems Corp 1003072-AHDM06-24-29PR is a 29-position plug housing designed for use with male pins.

  • Number of Positions: 29
  • Contact Gender: Male Pins
  • Fastening Type: Bayonet Lock
  • Features: Coupling Nut, Keyed
  • Shell Size: 24-29
  • Housing Material: Zinc Alloy
  • Shell Finish: Nickel
  • Ingress Protection: IP67/IP69K
  • Contacts: Not Included
