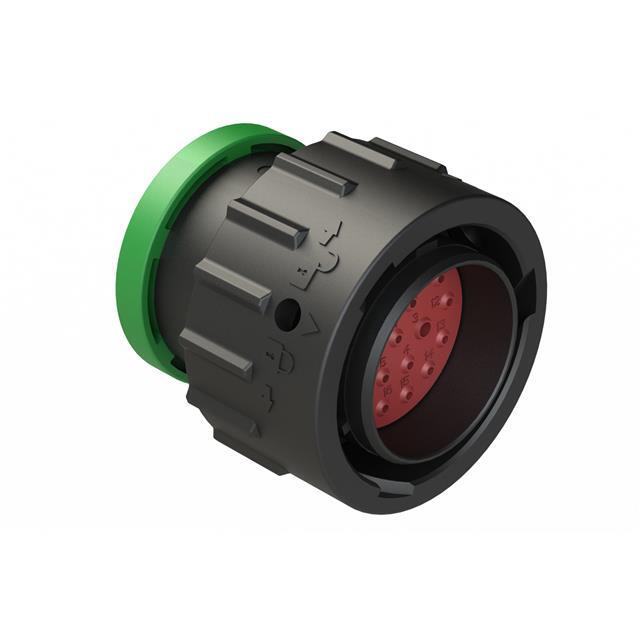

Same model may have multiple batches, images only for reference.
AHDP06-18-20PN-BRA Amphenol Sine Systems Corp – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AHDP06-18-20PN-BRA

Part No AHDP06-18-20PN-BRA
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors - Housings
Description 20 POSITION PLUG, PIN, SHELL SIZ
Datasheet
AHDP06-18-20PN-BRA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsCircular ConnectorsCircular Connector Housings
Manufacturer Amphenol Sine Systems Corp
Series DuraMate? AHDP
Packaging Box
Part Status Active
Connector Type Plug Housing
Type For Male Pins
Number of Positions 20
Shell Size - Insert 18-20
Contact Type Crimp
Contact Size 16 (2), 20 (18)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Housing Color Black
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Features Backshell, Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Operating Temperature -55°C ~ 125°C
Base Product Number AHDP06
Ultra Librarian 3D Model Ultra Librarian AHDP06-18-20PN-BRA CAD Model
