Same model may have multiple batches, images only for reference.

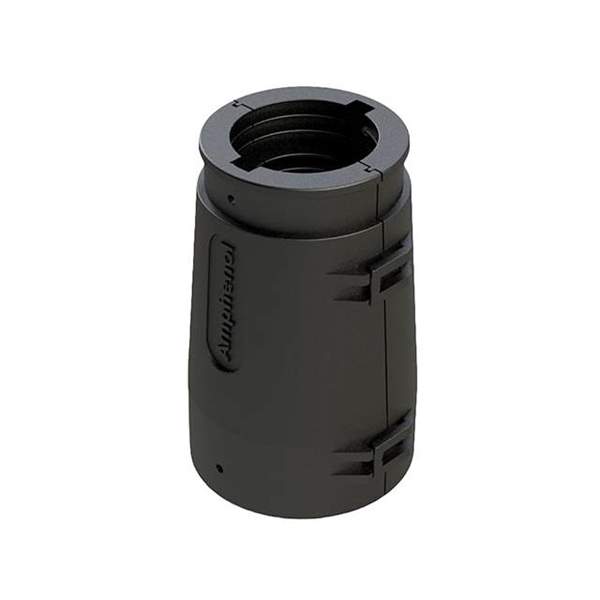

AHDPBS-010-2405 Real Image
Same model may have multiple batches, images only for reference.

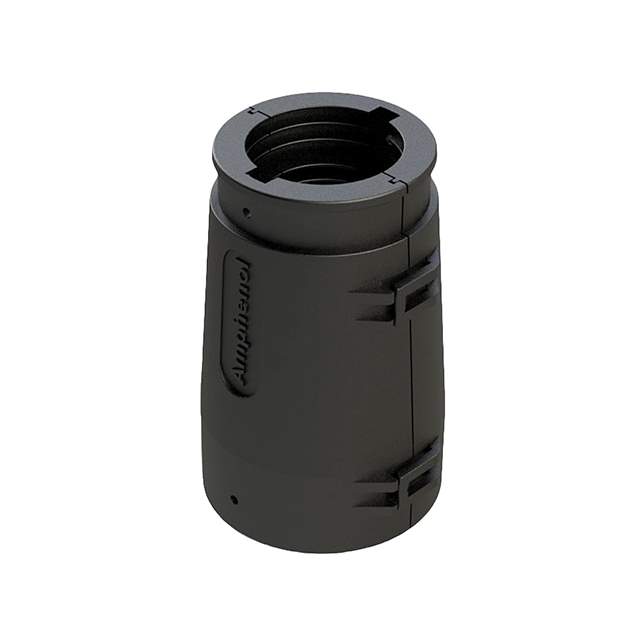

AHDPBS-010-2405

Part No AHDPBS-010-2405
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors - Backshells and Cable Clamps
Description CONN BACKSHELL SZ24 BLACK / Black Connector Backshell 24
Datasheet
AHDPBS-010-2405 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Backshells and Cable Clamps
Manufacturer Amphenol Sine Systems Corp
Packaging Bulk
Type Backshell
Shell Size - Insert 24
Cable Exit 180°
Shielding Unshielded
Color Black
Features Snap-On
Ingress Protection IP67 - Dust Tight, Waterproof
For Use With/Related Products AHDP Series
Base Product Number AHDPBS
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 889-2563
Standard Package 50
Win Source Part Number 1334528-AHDPBS-010-2405
Ultra Librarian 3D Model Ultra Librarian AHDPBS-010-2405 CAD Model

Description

The Amphenol Sine Systems Corp 1334528-AHDPBS-010-2405 is a black circular connector backshell and cable clamp with snap-on features and an ingress protection rating of IP67, making it dust-tight and waterproof.

  • Features: Snap-On
  • Ingress Protection: IP67
  • Shielding: Unshielded
  • Series: AHDP
  • Supply and Demand Status: Limited
  • Packaging: Bulk
  • Shell Size - Insert: 24
  • HTSUS Code: 8538.90.8180
