Same model may have multiple batches, images only for reference.

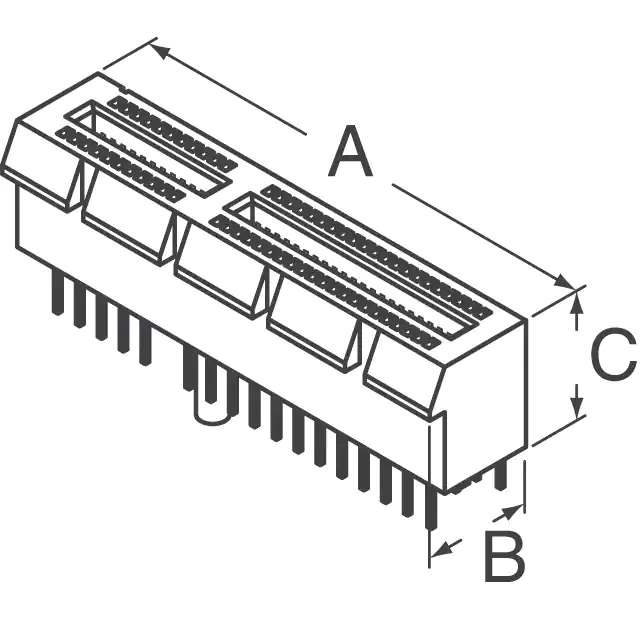

10018784-10002TLF Real Image
Same model may have multiple batches, images only for reference.

10018784-10002TLF

Part No 10018784-10002TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 98POS 0.039 / 98 Position Female Connector PCI Express? Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol
Series HPCE®
Package Tray
Product Status Active
Card Type PCI Express™
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10018784
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853545-10018784-10002TLF
Ultra Librarian 3D Model Ultra Librarian 10018784-10002TLF CAD Model

Description

The 853545-10018784-10002TLF is an edgeboard connector from the HPCE™ series by Amphenol. It is manufactured by Amphenol.

  • Connector Type: Female
  • Contact Type: Cantilever
  • Positions: 98
  • Pitch: 0.039" (1.00mm)
  • Color: Black
  • Features: Board Guide, Locking Ramp
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tray
  • Standard Package: 40 pcs
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Card Type: PCI Express™ cards
  • Card Thickness: 0.062" (1.57mm)
  • Read Out: Dual
  • Mounting: Through Hole
  • Temperature Range: -55°C to 85°C
  • HTSUS Code: 8536.69.4040
