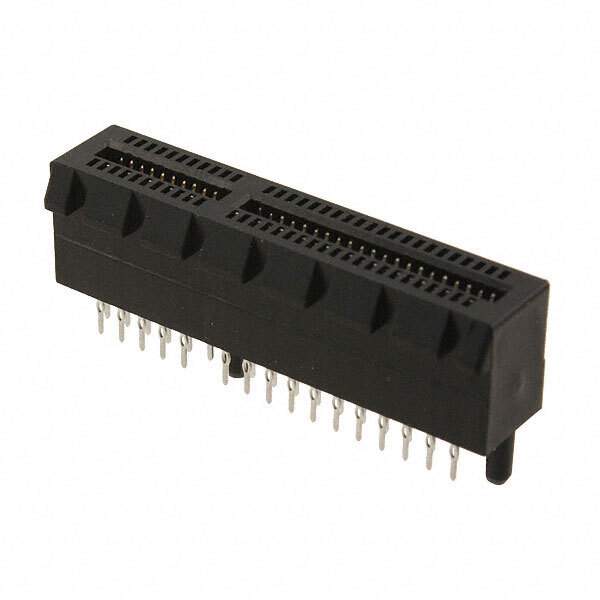

10039755-10111TLF Real Image
Same model may have multiple batches, images only for reference.

10039755-10111TLF

Part No 10039755-10111TLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 64POS 0.039 / 64 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type PCI Express™
Gender Female
Number of Positions/Bay/Row 11; 21
Number of Positions 64
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Base Product Number 10039755
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1003975510111TLF,609-4301
Standard Package 84
Win Source Part Number 1334015-10039755-10111TLF
Ultra Librarian 3D Model Ultra Librarian 10039755-10111TLF CAD Model

Description

The Amphenol ICC (FCI) 1334015-10039755-10111TLF is a female card edge connector with 64 positions and a pitch of 0.039" (1.00mm).

  • Positions: 64
  • Pitch: 0.039" (1.00mm)
  • Features: Board Guide, Locking Ramp, Press-Fit Termination
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Card Type: PCI Express™
  • Card Thickness: 0.062" (1.57mm)
  • Operating Temperature: -55°C ~ 85°C
  • Popularity: Low
  • Standard Pack: 84
