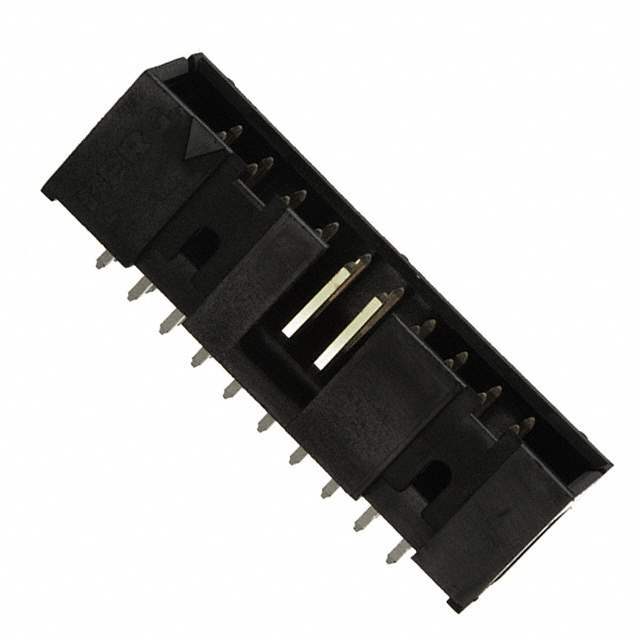

10056844-120ALF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10056844-120ALF

Part No 10056844-120ALF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM
Datasheet
10056844-120ALF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324241-10056844-120ALF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Ultra Librarian 3D Model Ultra Librarian 10056844-120ALF CAD Model

Description

FEATURES

● Four-walled shrouded headers

● Low profile headers with side window

● Selective plated pins of headers

● According to DIN 41651, HE10 and BT D2632
