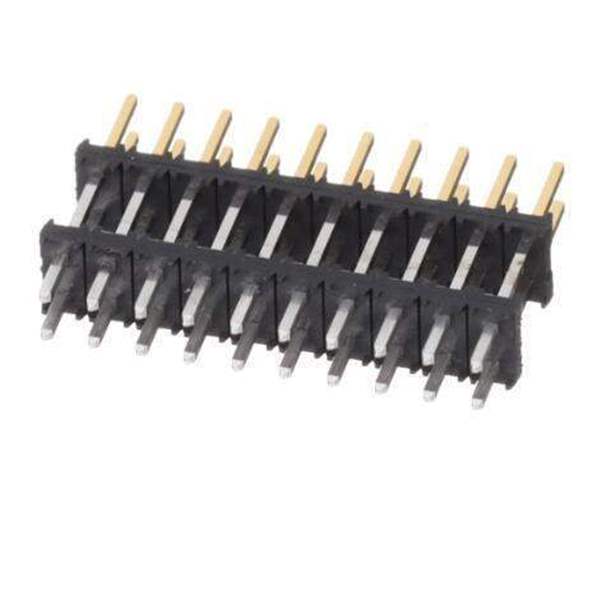

10066848-103LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10066848-103LF

Part No 10066848-103LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HDR 20POS 0.079" STACK T/H
Datasheet
10066848-103LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324258-10066848-103LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Board Spacers, Stackers (Board to Board)
Packaging Tape & Reel (TR)
Part Status Active
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Length - Overall Pin 0.531" (13.500mm)
Length - Post (Mating) 0.169" (4.300mm)
Length - Stack Height 0.264" (6.700mm)
Length - Tail 0.098" (2.500mm)
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 10066848-103LF CAD Model

Description

20 Position Header Spacer Connector 0.079" (2.00mm) Gold, GXT™ Through Hole
