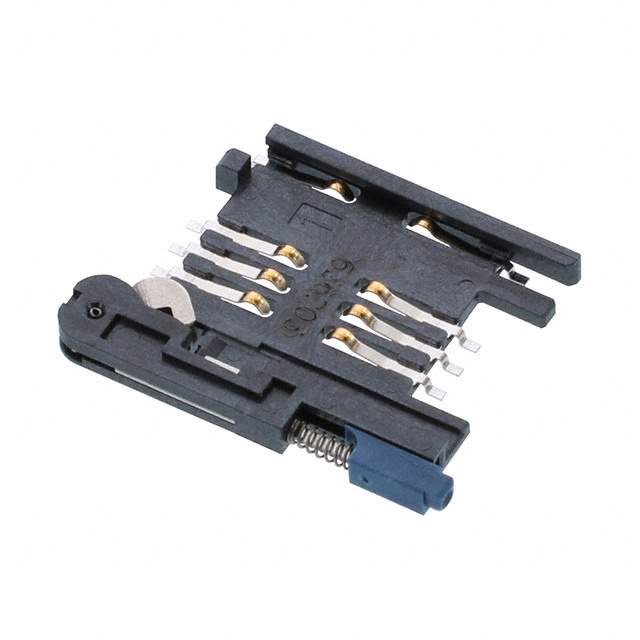

0912283007 Real Image
Same model may have multiple batches, images only for reference.

0912283007

Part No 0912283007
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM CARD PUSH-PUSH R/A SMD / 8 (6 + 2) Position Card Connector SIM Card Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Mfr Molex, LLC
Series 91228
Package Tape & Reel
Product Status Obsolete
Card Type SIM Card
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Left
Mounting Type Surface Mount, Right Angle
Features Board Guide, Switch
Height Above Board 0.118" (3.00mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number 091228
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 400 pcs
Win Source Part Number 1380445-0912283007
Ultra Librarian 3D Model Ultra Librarian 0912283007 CAD Model

Description

The Molex, LLC PC Card Sockets in the 91228 series are reliable connectors designed for memory cards.

  • Number of Positions: 8 (6 + 2)
  • Features: Board Guide, Switch
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Mounting Type: Surface Mount, Right Angle
  • Status: Obsolete
  • Manufacturer: Molex, LLC
