Same model may have multiple batches, images only for reference.

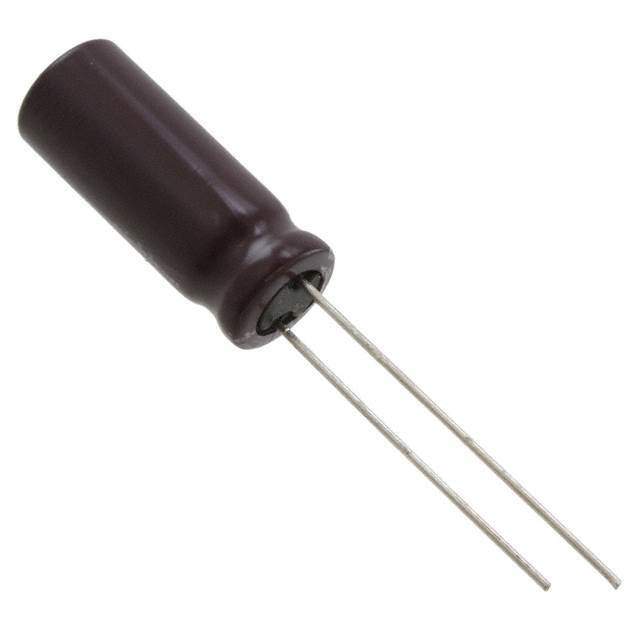

UPJ1H101MPD Real Image
Same model may have multiple batches, images only for reference.

UPJ1H101MPD

Part No UPJ1H101MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPJ1H101MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 410 mA @ 120 Hz
Impedance 180 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number UPJ1H101MPD-ND,493-14504
Standard Package 2,000
Win Source Part Number 1331154-UPJ1H101MPD
Ultra Librarian 3D Model Ultra Librarian UPJ1H101MPD CAD Model

Description

The Nichicon UPJ1H101MPD is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.5mm)
  • Mounting Type: Through-Hole
  • Package: Radial Can
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.827" (21.00mm)
  • Impedance: 180 mOhms
  • Ripple Current: 410 mA @ 120 Hz
  • Lifetime: 3000 hours @ 105°C
  • Polarized: Yes
  • Operating Temperature: -55°C to 105°C
  • ROHS3 Compliant: Yes
  • REACH Affected: No
  • Status: Not Recommended for New Designs
