Same model may have multiple batches, images only for reference.

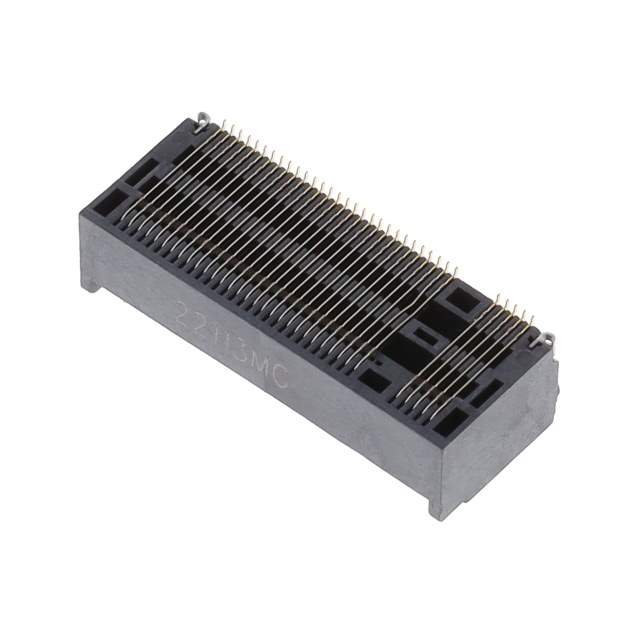

10131758-004RLF Real Image
Same model may have multiple batches, images only for reference.

10131758-004RLF

Part No 10131758-004RLF
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description M.2 CONN. 8.5MM H M KEY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features 67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Manufacturer AMPHENOL
Series HPCE®
Package Reel - TR
Operating Temperature Range -40°C ~ 80°C
Mounting Surface Mount, Right Angle
Family Name 10131758
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905003-10131758-004RLF
Ultra Librarian 3D Model Ultra Librarian 10131758-004RLF CAD Model

Description

The AMPHENOL 905003-10131758-004RLF is a 67 position female connector designed for M.2 (NGFF) mini card applications.

  • Plating: Gold
  • Housing Color: Black
  • Pitch: 0.020 inch (0.50mm)
  • Operating Temperature: -40°C to 80°C
  • Mounting: Surface Mountable
  • Orientation: Right Angle
  • Packaging: Reel
  • Series: HPCE®
  • Popularity: High
  • Supply and Demand: Balanced
