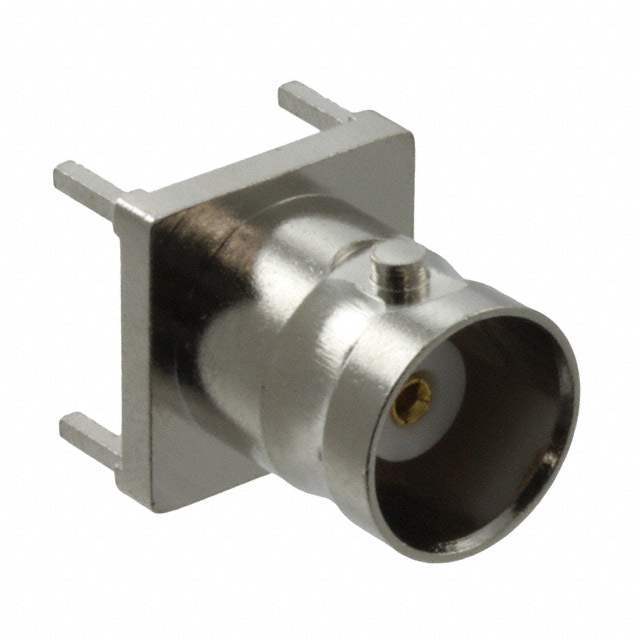

112406 Amphenol RF
Same model may have multiple batches, images only for reference.

112406

Part No 112406
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK STR 50 OHM PCB
Datasheet
112406 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310569-112406
Manufacturer Amphenol RF
Category Connectors, Interconnects > Coaxial Connectors (RF) > Coaxial Connector (RF) Assemblies
Packaging Bag
Part Status Active
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Through Hole
Number of Ports 1
Dielectric Material Polytetrafluoroethylene (PTFE)
Ultra Librarian 3D Model Ultra Librarian 112406 CAD Model

Description

BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
