Part No 112514
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies

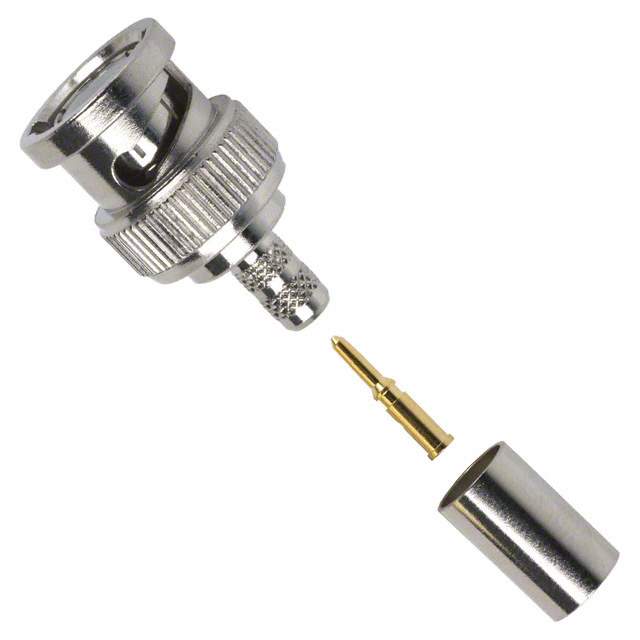

Description CONN BNC PLUG STR 50 OHM CRIMP / BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet
112514 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol RF
Packaging Bag
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-55, 142, 223, 400
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polyoxymethylene (POM) Acetal
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 1125
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 2266-112514,ACX1002
Standard Package 1
Win Source Part Number 1331994-112514
Ultra Librarian 3D Model Ultra Librarian 112514 CAD Model

Description

The Amphenol RF BNC coaxial connector is a male pin plug with a bayonet lock fastening type.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Bayonet Lock
  • Contact Termination: Crimp or Solder
  • Cable Group: RG-55, 142, 223, 400
  • Body Finish: Nickel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Polyoxymethylene (POM) Acetal
  • Voltage Rating: 500V
  • Frequency Max: 4GHz
  • Insertion Loss: 0.2dB
  • Shielding: Crimp Termination
  • Housing Color: Silver
  • Mounting: Free Hanging (In-Line)
