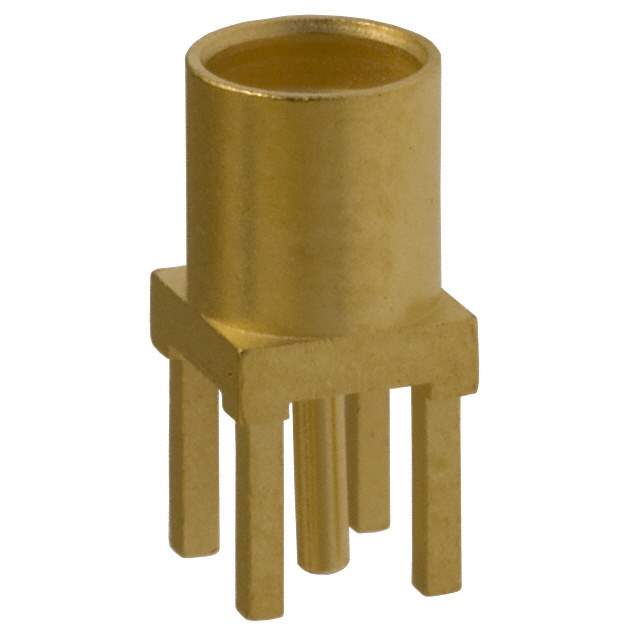

135-3701-201 Real Image
Same model may have multiple batches, images only for reference.

135-3701-201

Part No 135-3701-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX JACK STR 50 OHM PCB / MMCX Connector Jack, Female Socket 50Ohm Through Hole Solder
Datasheet
135-3701-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions Johnson
Package Bulk
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 170 V
Mating Cycles 500
Base Product Number 135-3701
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1337710-135-3701-201
Ultra Librarian 3D Model Ultra Librarian 135-3701-201 CAD Model

Description

The MMCX Jack Female Socket is a high-quality coaxial connector assembly designed for use in electronic devices.

  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Voltage Rating: 170V
  • Impedance: 50Ohm
  • Frequency Range: Up to 6 GHz
  • Temperature Range: -65°C to 165°C
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 500
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Housing Color: Gold
