Same model may have multiple batches, images only for reference.

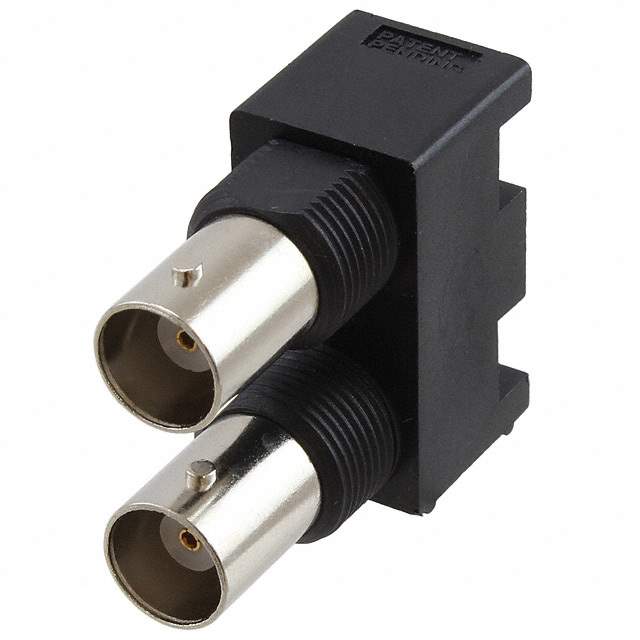

112705 Real Image
Same model may have multiple batches, images only for reference.

112705

Part No 112705
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Datasheet
112705 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol RF
Packaging Bag
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 2
Features Board Lock
Housing Color Black, Silver
Center Contact Material Phosphor Bronze
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Tin
Dielectric Material Polypropylene (PP)
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 1127
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number ACX2286
Standard Package 1
Win Source Part Number 1331954-112705
Ultra Librarian 3D Model Ultra Librarian 112705 CAD Model

Description

The 1331954-112705 is a BNC connector assembly from Amphenol RF.

  • Connector Type: Jack, female socket
  • Fastening Type: Bayonet lock
  • Contact Termination: Solder
  • Body Material: Zinc die-cast
  • Operating Frequency Range: Up to 4 GHz
  • Voltage Rating: 500 V
