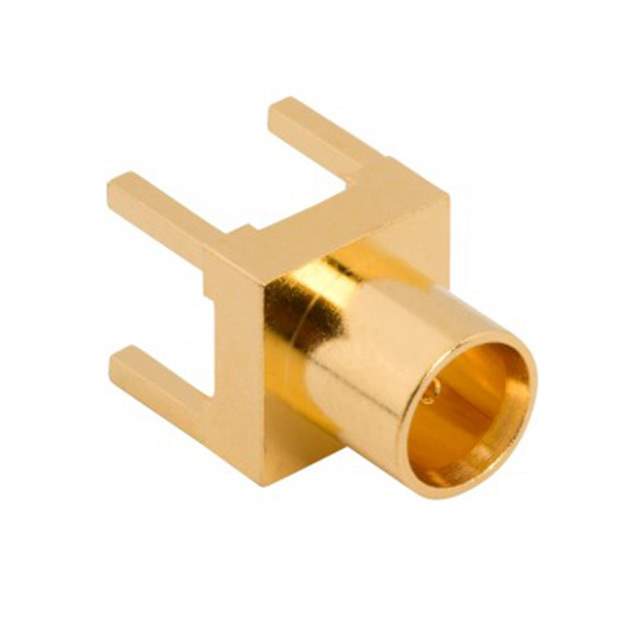

919-423J-71P12G Real Image
Same model may have multiple batches, images only for reference.

919-423J-71P12G

Part No 919-423J-71P12G
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description MCX STRAIGHT PCB JACK, 12G OPTIM / MCX Connector Jack, Female Socket 75Ohm Through Hole Solder
Datasheet
919-423J-71P12G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Amphenol RF
Packaging Bulk
Connector Style MCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Through Hole
Fastening Type Snap-On
Frequency - Max 12 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 91942
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 115-919-423J-71P12G
Standard Package 1
Win Source Part Number 1331970-919-423J-71P12G
Ultra Librarian 3D Model Ultra Librarian 919-423J-71P12G CAD Model

Description

The Amphenol RF 1331970-919-423J-71P12G MCX series female socket jack connector is an ideal choice for coaxial connectors (RF) assemblies.

  • Contact Termination: Soldered
  • Fastening Type: Snap-on
  • Maximum Frequency: 12 GHz
  • Impedance: 75Ohm
  • Package: Bulk
  • Standard Package: 1
  • Body Material: Brass
  • Center Contact Material: Beryllium copper
  • Dielectric Material: PTFE
  • Temperature Range: -65°C to 165°C
  • Mating Cycles: 500
  • Housing Color: Gold
  • Body Finish: Gold
  • Center Contact Plating: Gold
