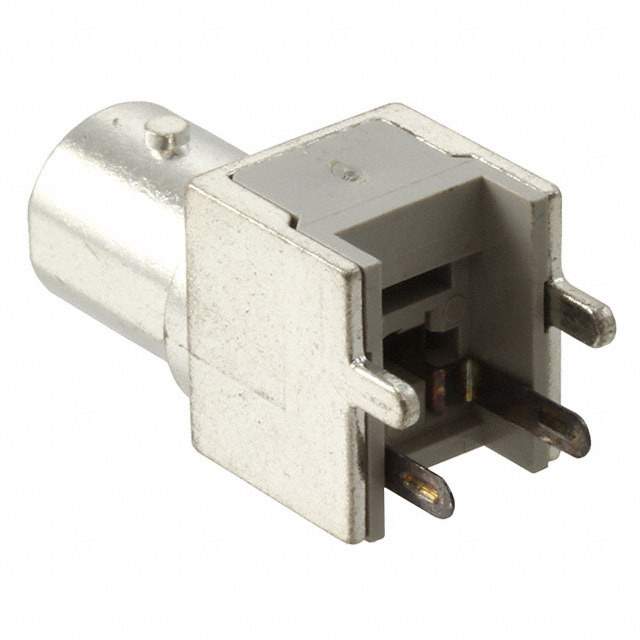

6274314-1 Real Image
Same model may have multiple batches, images only for reference.

6274314-1

Part No 6274314-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK STR 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Product Status Obsolete
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Features Internal Switch
Housing Color Silver
Center Contact Material Phosphor Bronze
Body Material Zinc
Body Finish Tin
Center Contact Plating Silver
Dielectric Material Polyphenylene Oxide (PPO)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 6274314
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number A109164,-6274314-1-SI,2266-6274314-1
Standard Package 80
Win Source Part Number 1331988-6274314-1
Ultra Librarian 3D Model Ultra Librarian 6274314-1 CAD Model

Description

The TE Connectivity AMP Connectors 6274314-1 is a BNC coaxial connector assembly with a jack, female socket connector type and a bayonet lock fastening type.

  • Connector Type: BNC Coaxial Connector Assembly
  • Connector Type: Jack, Female Socket
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500V
  • Impedance: 50Ohm
  • Frequency Range: Up to 4 GHz
  • Mounting Style: Through-Hole
  • ROHS Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 Unlimited
