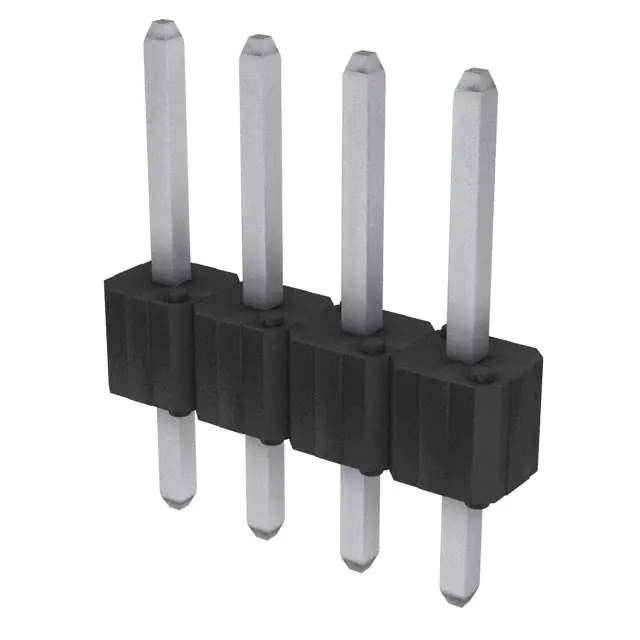

68001-404HLF

Name: 68001-404HLF
Brand: Amphenol
SKU: 907731
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	68001-404HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol
Series	BERGSTIK® II
Package	Bag
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Base Product Number	68001
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	907731-68001-404HLF
Ultra Librarian 3D Model	Ultra Librarian 68001-404HLF CAD Model

Alternative Products

Description

The AMPHENOL 907731-68001-404HLF is a male pin header connector from Amphenol's BERGSTIK® II series.

Positions: 4
Connection Type: Board-to-Board
Fastening Type: Push-Pull
Contact Finish: Tin
Contact Finish Thickness: 100.0µin (2.54µm)
Current Rating: 3A per contact
Temperature Range: -65°C to 125°C
ECCN: EAR99
