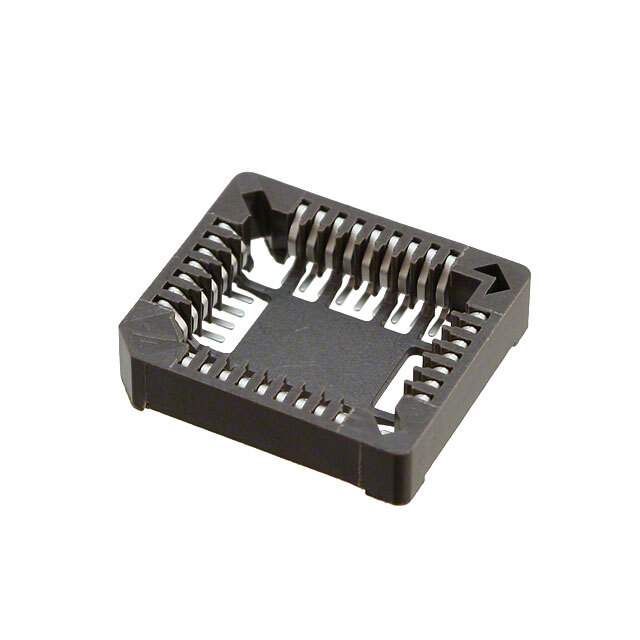

69802-432LF Real Image
Same model may have multiple batches, images only for reference.

69802-432LF

Part No 69802-432LF
Manufacturer Amphenol
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 32POS TIN  /  32 (2 x 7, 2 x 9) Pos PLCC Socket Tin Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Amphenol ICC (FCI)
Package Tape & Reel
Type PLCC
Number of Positions or Pins (Grid) 32 (2 x 7, 2 x 9)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Material - Mating Phosphor Bronze
Mounting SMD (SMT)
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 150.0µin (3.81µm)
Contact Material - Post Phosphor Bronze
Housing Material Polyphenylene Sulfide (PPS)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 69802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 69802432LF,609-4532-6,2266-698A-2402-17TR,2266-69802-432LFTR,609-4532-1,609-4532-2
Standard Package 390
Win Source Part Number 1039822-69802-432LF
Ultra Librarian 3D Model Ultra Librarian 69802-432LF CAD Model

Description

The Amphenol 1039822-69802-432LF is a surface mount device (SMD) socket for ICs and transistors.

  • Pitch: 0.050" (1.27mm)
  • Positions/Pins (Grid): 32
  • Contact Finish: tin
  • Contact Finish Thickness: 150.0µin (3.81µm)
  • Housing Material: polyphenylene sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
